Angular CLI


Angular now comes with a command-line interface (CLI) to make it easier and faster to build Angular applications.

Features

The Angular CLI helps with:

Bootstrapping a project

It creates the initial project structure with a root NgModule and a root component and bootstraps it using the platformBootstrapDynamic method.

The project is also configured to use the webpack loader which handles things like module loading, bundling and minification of dependent code.

Note

In the course we’ve used SystemJS for this since webpack doesn’t work with Plunker yet. We’ll continue to use SystemJS for the code samples in Plunker and WebPack for any applications created with the Angular CLI.
Serving and live reloading

The CLI starts a local web-server so we can view our application in the browser via localhost:4000.

The CLI also watches for any changes to our files and automatically reloads the webpage if there are any.

Code generation

Using the CLI we can create components, directives, services, pipes, etc…​ all from the command line with all the necessary files, folders and boilerplate code included.

All the generated code adheres to the official Angular style guide.

Note

In Angular 1 the Angular team never supported an official style guide. This meant that most projects ended up looked pretty different to each other. A developer moving teams would have to figure out from scratch how this team likes to write Angular 1 code.
Testing

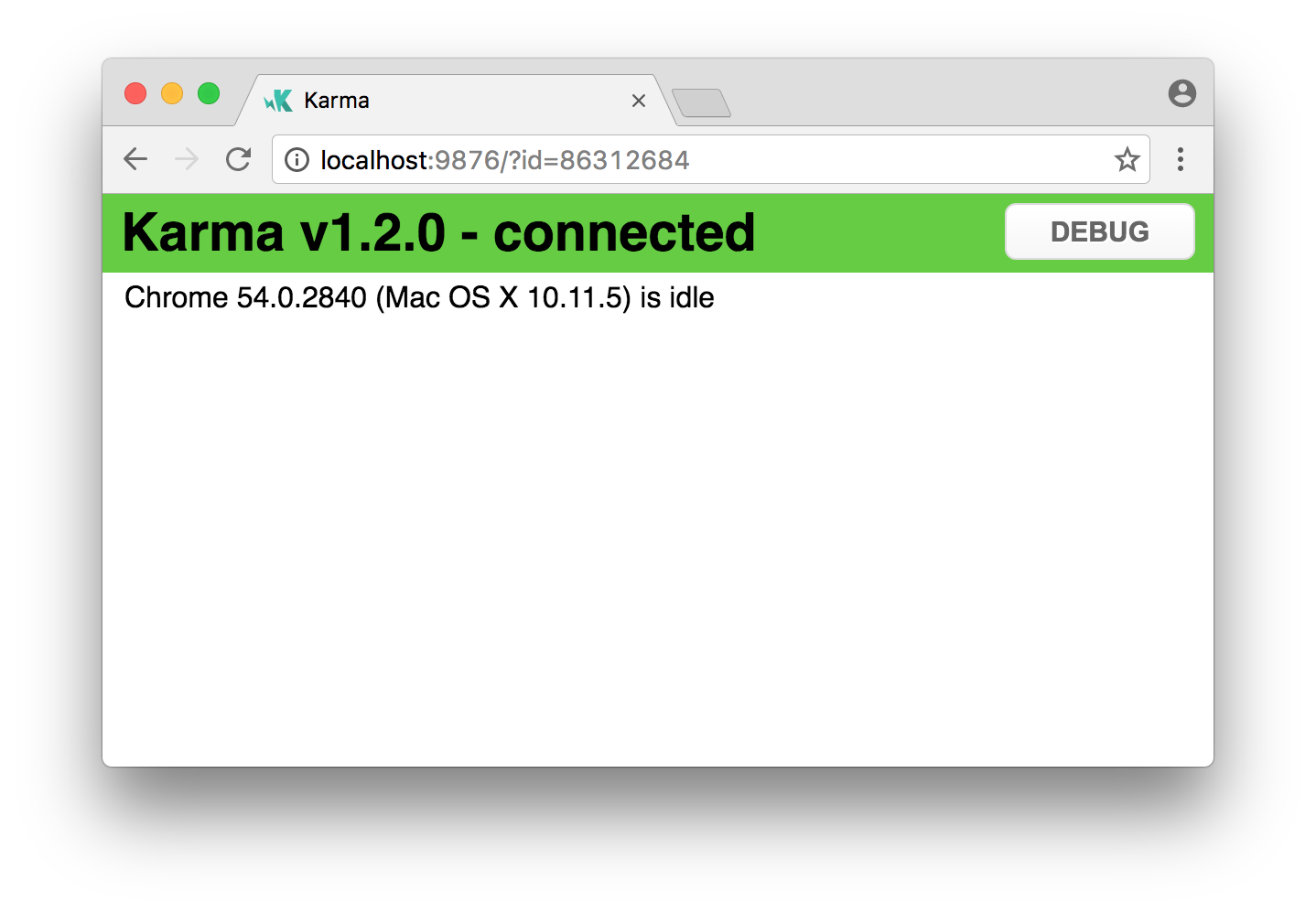

The generated code also comes with bootstrapped Jasmine test spec files, we can use the CLI to compile and run all the tests with a single command.

Whenever the CLI detects changes to any file it re-runs all the tests automatically in the background.

Packaging and releasing

The CLI doesn’t just stop with development, using it we can also package our application ready for release to a server.

Installing the Angular CLI

To install the CLI we use Node and npm.

npm install -g @angular/cli

If the above ran successfully it will have made available to you a new application called ng, to test this installed correctly run this command:

ng -v

It should output the version of the application that was installed, like so:

    _                      _                 ____ _     ___
   / \   _ __   __ _ _   _| | __ _ _ __     / ___| |   |_ _|
  / △ \ | '_ \ / _` | | | | |/ _` | '__|   | |   | |    | |
 / ___ \| | | | (_| | |_| | | (_| | |      | |___| |___ | |
/_/   \_\_| |_|\__, |\__,_|_|\__,_|_|       \____|_____|___|
               |___/
@angular/cli: 1.4.1
node: 8.1.3
os: darwin x64

Start an Application with ng new

Let’s create a new project called codecraft.

To bootstrap our new project with ng we run this command:

ng new codecraft

Tip

This command might take sometime to run, be patient.

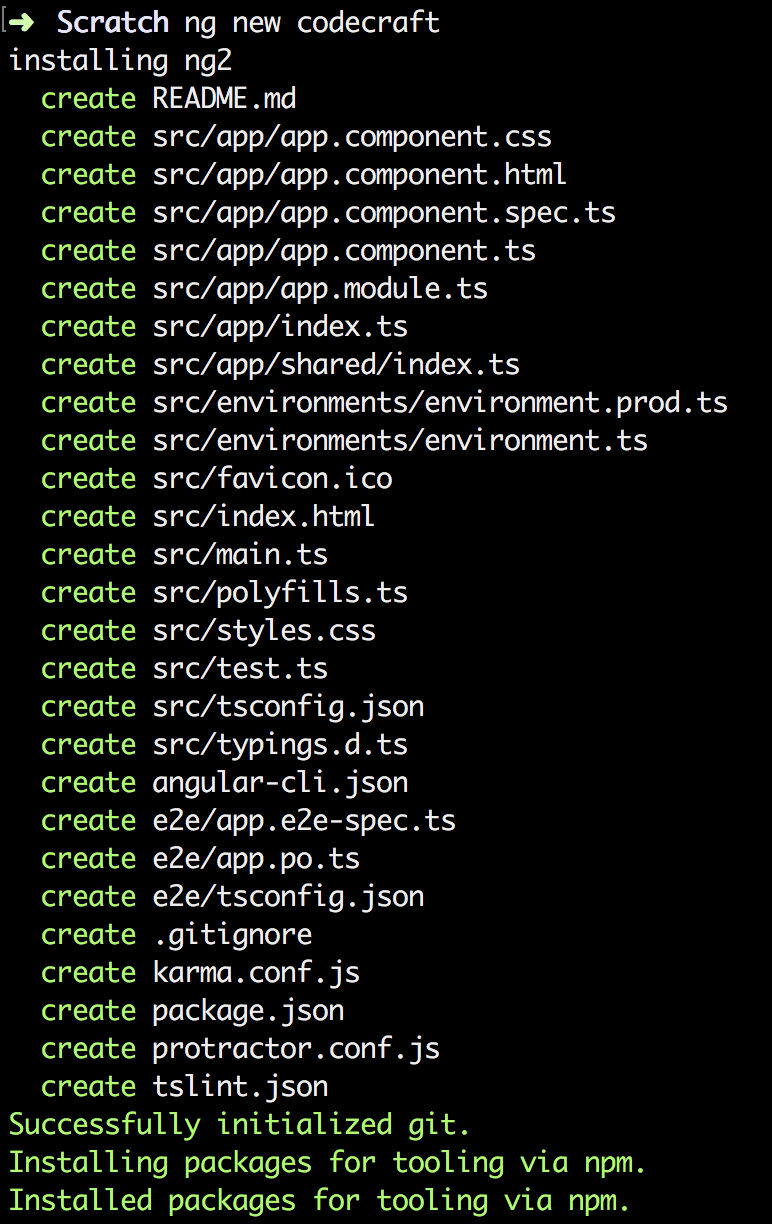

This outputs something like the below:

ng new output

The command generates a number of new files and folders for us:

codecraft

// Production or development builds of our application go here.
├── dist

// Main application code goes here.
├── src
│   ├── app
│   │   ├── app.component.css
│   │   ├── app.component.html
│   │   ├── app.component.spec.ts
│   │   ├── app.component.ts
│   │   └── app.module.ts

// Settings for the different environments, dev, qa, prod.
│   ├── environments
│   │   ├── environment.prod.ts
│   │   └── environment.ts

// Main HTML and TypeScript files
│   ├── index.html
│   ├── main.ts

│   ├── favicon.ico
│   ├── polyfills.ts
│   ├── styles.css

// Prepares test environment and runs all unit tests.
│   ├── test.ts

// TypeScript configuration file
│   ├── tsconfig.app.json
│   ├── tsconfig.spec.json

// TypeScript type definition file
│   └── typings.d.ts

// The E2E tests for our application go here.
├── e2e

├── angular-cli.json
├── karma.conf.js
├── package.json
├── protractor.conf.js
├── README.md
└── tslint.json

Note

The directory structure follows the recommended app structure and style guide.

As well as creating the files and folders for us; we can see from package.json that it installed the correct versions of all the required npm dependencies for us also.

{
  "name": "activity",
  "version": "0.0.0",
  "license": "MIT",
  "scripts": {
    "ng": "ng",
    "start": "ng serve",
    "build": "ng build",
    "test": "ng test",
    "lint": "ng lint",
    "e2e": "ng e2e"
  },
  "private": true,
  "dependencies": {
    "@angular/animations": "^5.0.0",
    "@angular/common": "^5.0.0",
    "@angular/compiler": "^5.0.0",
    "@angular/core": "^5.0.0",
    "@angular/forms": "^5.0.0",
    "@angular/http": "^5.0.0",
    "@angular/platform-browser": "^5.0.0",
    "@angular/platform-browser-dynamic": "^5.0.0",
    "@angular/router": "^5.0.0",
    "core-js": "^2.4.1",
    "rxjs": "^5.5.2",
    "zone.js": "^0.8.14"
  },
  "devDependencies": {
    "@angular/cli": "1.5.0",
    "@angular/compiler-cli": "^5.0.0",
    "@angular/language-service": "^5.0.0",
    "@types/jasmine": "~2.5.53",
    "@types/jasminewd2": "~2.0.2",
    "@types/node": "~6.0.60",
    "codelyzer": "~3.2.0",
    "jasmine-core": "~2.6.2",
    "jasmine-spec-reporter": "~4.1.0",
    "karma": "~1.7.0",
    "karma-chrome-launcher": "~2.1.1",
    "karma-cli": "~1.0.1",
    "karma-coverage-istanbul-reporter": "^1.2.1",
    "karma-jasmine": "~1.1.0",
    "karma-jasmine-html-reporter": "^0.2.2",
    "protractor": "~5.1.2",
    "ts-node": "~3.2.0",
    "tslint": "~5.7.0",
    "typescript": "~2.4.2"
  }
}

So far in this course we have bundled all our code into one file on Plunker for convenience.

Let’s see how the Angular CLI breaks up the code into multiple files and where those files are located.

src/app/app.component.ts

The new project is bootstrapped with one component, our root component which it called AppComponent and has a selector of app-root.

Listing 1. src/app/app.component.ts
import { Component } from '@angular/core';

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {
}
src/index.html

app-root component has been added to our index.html file already.

There are no script tags present yet, that’s fine the angular build process adds all the required script and link tags for us.

Listing 2. src/index.html
<!doctype html>
<html lang="en">
<head>
  <meta charset="utf-8">
  <title>Activity</title>
  <base href="/">

    <link rel="stylesheet"
        href="https://maxcdn.bootstrapcdn.com/bootstrap/4.0.0-alpha.4/css/bootstrap.min.css">

  <meta name="viewport" content="width=device-width, initial-scale=1">
  <link rel="icon" type="image/x-icon" href="favicon.ico">
</head>
<body>
  <app-root></app-root>
</body>
</html>
src/app/app.module.ts

Our top-level module configuration is stored in this file.

import { BrowserModule } from '@angular/platform-browser';
import { NgModule } from '@angular/core';
import { FormsModule } from '@angular/forms';
import { HttpModule } from '@angular/http';

import { AppComponent } from './app.component';
import { JokeComponent } from './joke/joke.component';
import { JokeListComponent } from './joke-list/joke-list.component';
import { JokeFormComponent } from './joke-form/joke-form.component';
import { HeaderComponent } from './header/header.component';

@NgModule({
  declarations: [
    AppComponent,
    JokeComponent,
    JokeListComponent,
    JokeFormComponent,
    HeaderComponent
  ],
  imports: [
    BrowserModule,
    FormsModule,
    HttpModule
  ],
  providers: [],
  bootstrap: [AppComponent]
})
export class AppModule { }
src/main.ts

The actual act of importing our main module and bootstrapping our Angular web application is left to the main.ts file.

import { enableProdMode } from '@angular/core';
import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';

import { AppModule } from './app/app.module';
import { environment } from './environments/environment';

if (environment.production) {
  enableProdMode();
}

platformBrowserDynamic().bootstrapModule(AppModule)
  .catch(err => console.log(err));

Serve an Application with ng serve

With the CLI we can also easily serve our application using a local web-server.

We just run:

ng serve

This builds our application, bundles all our code using webpack and makes it all available through localhost:4200.

ng serve also watches for any changes to files in our project and auto-reloads the browser for us.

The command runs the application through a web-server that support HTML5 push-state routing.

Note

The above will make sense once we cover Routing later on in this book.

Generate Code with ng generate

The ability to generate stub code is one of the most useful features of the CLI.

The most exciting part of this is that it automatically generates code that adheres to the official style guide.

Important

Projects built using the Angular CLI should look like each other. Developers who are used to the way Angular CLI generates files are going to find it easier to work on multiple different projects, as long as they all use the Angular CLI.

With the generate command we can create new components, directives, pipes, services, classes, interfaces and enums, amongst other things.

Each of the above type of thing it can create is called a scaffold.

We can run this command using ng generate <scaffold> <name>

If we wanted to generate a component called HeaderComponent we would write:

ng generate component Header

This creates a number of files in a folder called header in src/app, like so:

app
├── header
│   ├── header.component.css // The CSS for this component
│   ├── header.component.html // The template for this component
│   ├── header.component.spec.ts // The unit test for this component
│   └── header.component.ts // The component TypeScript file

Taking a look at header.component.ts:

import { Component, OnInit } from '@angular/core';

@Component({
  selector: 'app-header',
  templateUrl: './header.component.html',
  styleUrls: ['./header.component.css']
})
export class HeaderComponent implements OnInit {

  constructor() { }

  ngOnInit() {
  }

}

Tip

Don’t name your component HeaderComponent. Angular CLI automatically appends Component to the name, so you component class would end up being HeaderComponentComponent.

The command above can be shortened to:

ng g c Header

Tip

If we run the command in an app folder, the generate command will create files relative to the current folder you are in. So if we are in src/app/header and we run ng g c LoginButton it will generate the files in src/app/header/login-button/

We can also be explicit about where we want the generated files to go by running ng g component ./src/app/foo/bar this will create a component called BarComponent in the folder ./src/app/foo/bar.

Available Scaffolds

Component
ng g component My // Creates MyComponent

By default all generated files go in into src\app\my-component, a folder called my-component is created for us.

Directive
ng g directive My // Creates MyDirective

By default all generated files go in into src\app, no folder is created.

Pipe
ng g pipe My // Creates MyPipe

By default all generated files go in into src\app, no folder is created.

Service
ng g service MyService // Creates MyService

By default all generated files go in into src\app, no folder is created.

Class
ng g class MyClass // Creates MyClass

By default all generated files go in into src\app, no folder is created.

Interface
ng g interface MyInterface // Creates MyInterface

By default all generated files go in into src\app, no folder is created.

Enum
ng g enum MyEnum // Creates MyEnum

By default all generated files go in into src\app, no folder is created.

Create a Build with ng build

The ng serve command does a great job of enabling development locally.

However eventually we will want some code which we can host on another server somewhere.

The Angular CLI again has us covered in this regard, if we want to create a development build we simply type

ng build

This bundles all our JavaScript, CSS, HTML into a smaller set of files which we can host on another site simply.

It outputs these files into the dist folder:

.
├── assets
├── index.html
├── inline.js
├── inline.map
├── main.bundle.js
├── main.map
├── styles.bundle.js
└── styles.map

To serve our built application site we just need to serve this folder. For example, if using Python we could simply run python -m SimpleHTTPServer from the dist folder and view the application from 0.0.0.0:8000.

Production Builds

By default the ng build command creates a development build, no effort is made to optimise the code.

To create a production build we just run

ng build --prod

This might generate an output like the below:

.
├── assets
├── index.html
├── inline.js
├── main.3f26904b701596b6d90a.bundle.js
├── main.3f26904b701596b6d90a.bundle.js.gz
└── styles.b52d2076048963e7cbfd.bundle.js

Running with --prod changes a few things:

  • The bundles now have random strings appended to them to enable cache busting.
    This ensures that a browser doesn’t try to load up previously cached versions of the files and instead load the new ones from the server.

  • The file sizes are much smaller. The files have been processed through a minifier and uglifier.

  • There is a much small .gz file, this is a compressed version of the equivalent JavaScript file.
    Browsers will automatically try to download the .gz version of files if they are present.

Adding a Third-Party Module

The build system simplifies the process of serving and releasing your application considerably. It works only because Angular knows about all the files used by your application.

So when we include third-party libraries into our application we need to do so in such a way that Angular knows about the libraries and includes them in the build process.

Bundled with the Main Application JavaScript Files

If we want to include a module to use in our Angular JavaScript code, perhaps we want to to use the moment.js library, we just need to install it via npm like so:

npm install moment --save

If we also want to include the TypeScript type definition file for our module we can install it via:

npm install @types/moment --save

Now when Angular create a build either when releasing or serving locally, the moment library is automatically added to the bundle.

Global Library Installation

Some JavaScript libraries need to be added to the global scope, and loaded as if they were in a script tag.

We can do this by editing the angular-cli.json file in our project root.

The Twitter Bootstrap library is a great example of this, we need to include CSS and script files in the global scope.

First we install the Bootstrap library via npm like so:

npm install bootstrap@next

Then we add the required JavaScript files to the app.scripts section or the app.styles in angular-cli.json like so:

{
  .
  .
  .
  "apps": [
    {
      .
      .
      .
      "styles": [
        "styles.css",
        "../node_modules/bootstrap/dist/css/bootstrap.css"
      ],
      "scripts": [
        "../node_modules/jquery/dist/jquery.js",
        "../node_modules/tether/dist/js/tether.js",
        "../node_modules/bootstrap/dist/js/bootstrap.js"
      ],
      .
      .
      .
    }
  ],
  .
  .
  .
}

Now when the build runs the CLI includes those files in the bundle and injects then in the global scope.

Testing Angular

Angular has always been synonymous with testing and so there should be no surprise that the command-line tool comes with features to make Angular testing easier.

The default mechanism for unit testing in Angular is via Jasmine and Karma.

Whenever we generate code via scaffolds it also generates a .spec.ts. The code the CLI bootstraps inside this file depends on the scaffold type but essentially is a Jasmine test spec which you can flesh out with more test cases.

Note

These types of tests are called unit tests because we should be writing the tests so we only test one unit of code and each test case is independent of the others.

We can run all our unit tests with one command:

ng test

This builds our project and then runs all the tests, any errors are output to the terminal.

This command also watches for any changes in our files and, if it detects any, re-runs the tests automatically.

Karma Browser Window

Important

When running the tests it opens up a browser window like the example above.

It needs this browser windows to run the tests, do not close it!

Summary

The above is just an overview of the main commands and their default features.

To find out more details about each command and how we can customise the behaviour via flags we can run ng help in the terminal.

By handling the setup for us the CLI has made working with Angular much easier.

By standardising setup and structure it’s also made Angular projects fungible. Angular developers used to the Angular CLI should feel comfortable on all Angular CLI projects and be able to hit the floor running.

Caught a mistake or want to contribute to the book? Edit this page on GitHub!


Advanced JavaScript

This unique course teaches you advanced JavaScript knowledge through a series of interview questions. Bring your JavaScript to the 2021's today.

Level up your JavaScript now!
