HTTP Example with Observables

In the previous lecture we architected an application which made HTTP calls and handled all asynchronous work by using Promises.

In this lecture we are going to implement exactly the same application but using Observables instead.

Important

Please note we still need to use the CORS plugin, or one of the other work arrounds, that we discussed in the previous lecture.

Learning Objectives

Our goal in this lecture is not to just replace Promises with Observables but instead to go a deeper and implement most of our functionality with an Observable Chain.

Working with Observables does require a different way of thinking about programming, It’s my hope that after this lecture you will have a much better idea of how to solve similar problems with RxJS and observables.

Returning an Observable from the service

In the promise example we stored the returned results on the service itself in the results propery.

In this observable example we are instead going to make the search function return an observable which the AppComponent is going to subscribe to, like so:

import {Observable} from 'rxjs';
.
.
.
search(term:string): Observable<SearchItem[]> { .. }

The return type is Observable<SearchItem[]>, it’s going to return an observable where each item in the observable is SearchItem[], each item in the observable is going to be an array of SearchItems.

That’s our intention at least but we need to adjust our search function to make it a reality, a first step would look like so:

search(term:string): Obervable<SearchItem[]> {
  let apiURL = `${this.apiRoot}?term=${term}&media=music&limit=20`;
  return this.http.get(apiURL)
}

We’ve removed the Promise code and since http.get(…​) returns an Observable, specifically an Observable of Response types so the type would be Observable<Response>, we just return that instead.

However the above has two problems:

  1. The return type of http.get(…​) is Observable<Response> and not Observable<SearchItem[]>

  2. It’s missing the code to convert the raw json to our SearchItem domain model.

Basically we still need to convert the Response to an array of SearchItems.

We can do that with our Observable by running a map operation where we convert each Response to an array of SearchItems, like so:

search(term: string): Observable<SearchItem[]> {
  let apiURL = `${this.apiRoot}?term=${term}&media=music&limit=20&callback=JSONP_CALLBACK`;
  return this.http.get(apiURL) (1)
      .map(res => { (2)
        return res.json().results.map(item => { (3)
          return new SearchItem( (4)
              item.trackName,
              item.artistName,
              item.trackViewUrl,
              item.artworkUrl30,
              item.artistId
          );
        });
      });
}
1 this.http.get(apiURL) returns an Observable.
2 map is an observable operator which calls a function for each item on its input stream and pushes the result of the function to it’s output stream. In this case each input item is a Response object.
3 We loop over each item in the results property of the Response object and transform the item via a function.
4 We convert the raw data returned from the iTunes API into an instance of SearchItem

Important

map in this instance is an operator from RxJS so to use it we need to explicitly import it via:

import 'rxjs/add/operator/map';

The end result is that the code above converts the Observable<Response> that gets returned from this.http.get(…​) to an Observable<SearchItem[]> which it then returns to the caller.

The caller in our case is the AppComponent so we need to change that to work with Observables as well.

One way to use this Observable in our AppComponent would be just to subscribe to it and store the results locally, like so:

class AppComponent {
  private loading: boolean = false;
  private results: SearchItem[];

  constructor(private itunes:SearchService) { }

  doSearch(term:string) {
    this.loading = true;
    this.itunes.search(term).subscribe( data => {
      this.loading = false;
      this.results = data (1)
    });
  }
}
1 We subscribe to the Observable<SearchItem[]> returned from the service and store each SearchItem[] to our local results property.

We also need to change our template to loop over the local results property and not the old itunes.results property.

<div  *ngFor="let item of results"> ... </div>

Running the above application works, we can congratulate ourselves for using Observables with HTTP request, but we can go deeper.

Using the async pipe

The above is a good start but we are not really using Observables to their full extent, for one thing we are subscribing to the observable and storing the results locally on the component, we can skip that by just using the async pipe in our template like so:

class AppComponent {
  private loading: boolean = false;
  private results: Observable<SearchItem[]>;

  constructor(private itunes:SearchService) { }

  doSearch(term:string) {
    this.loading = true;
    this.results = this.itunes.search(term); (1)
  }
}
1 results now stores the Observable itself and not an array of SearchItems. We don’t need to subscribe but simply store the result of calling itunes.search.

To make the above work we need to use the async pipe in our template, like so:

<div  *ngFor="let item of results | async"> ... </div>

Observables all the way down

Pressing a Search button every-time we want to make a search is so 2012, lets change our application so it uses a reactive form and performs a search as we type. We’ve covered reactive forms before so we just need to change our AppComponent to add a search field, like so:

<form class="form-inline">
  <div class="form-group">
    <input type="search"
           class="form-control"
           placeholder="Enter search string"
           [formControl]="searchField">
  </div>
</form>

We also change our component to setup a form model, like so:

class AppComponent {
  private loading: boolean = false;
  private results: Observable<SearchItem[]>;
  private searchField: FormControl;

  constructor(private itunes:SearchService) { }

  ngOnInit() {
    this.searchField = new FormControl();
    this.searchField.valueChanges
      .debounceTime(400)
      .distinctUntilChanged()
      .subscribe(); // Need to call subscribe to make it hot!
  }

  doSearch(term:string) {
    this.itunes.search(term)
  }
}

To summarise the changes:

  1. We’ve added a searchField FormControl to our AppComponent properties

private searchField: FormControl;
  1. We’ve linked our searchField to our template form element with a [formControl] directive

[formControl]="searchField"
  1. To support the above we’ve imported code from the form module and added them to our NgModules imports.

import {ReactiveFormsModule, FormControl, FormsModule} from '@angular/forms';

@NgModule({
  imports: [
    BrowserModule,
    ReactiveFormsModule,
    FormsModule,
    HttpModule,
  ],
  declarations: [AppComponent],
  bootstrap: [AppComponent],
  providers: [SearchService]
})
  1. We’ve implemented the ngOnInit function so we can work with our search control once it’s been linked to the form element.

ngOnInit() { ... }
  1. We now subscribe to the observable our searchField exposes via the valuesChanged property, we use debounceTime and distintUntilChanged so we only get notified when the user really wants us to make a query.

this.searchField.valueChanges
  .debounceTime(400)
  .distinctUntilChanged()
  .subscribe(); // Need to call subscribe to make it hot!
  1. To enable the use of these operators we’ve explicitly included them from RxJS

import 'rxjs/add/operator/debounceTime';
import 'rxjs/add/operator/distinctUntilChanged';

Linking two observables together

We now have an Observable on the AppComponent which emits a search term every time we want to perform a search.

We also have the SearchService returning an Observable via the search function with the results of performing a search.

How do we link these two together?

The valueChanges observable on our searchField is of type Observable<string>

Through a chain of operators we want to convert that Observable<string> into an Observable<SearchItem[]>.

To start with lets use the map operator, like so:

ngOnInit() {
  this.searchField = new FormControl();
  this.searchField.valueChanges
    .debounceTime(400)
    .distinctUntilChanged()
    .map( term => this.itunes.search(term)) (1)
    // Need to call subscribe to make it hot!
    .subscribe( value => console.log(value));
}
1 We call the search service for every emit of a search term on the input stream.

If we ran the above and looked at the logs, instead of seeing see an array of SearchItems printing out we see something that looks like an Observable, like so:

Observable {_isScalar: false, source: Observable, operator: MapOperator}

What’s happening is that itunes.search(term) isn’t returning SearchItem[] it’s returning Observable<SearchItem[]>.

So the map operator isn’t converting a string to SearchItem[] it’s converting a string to Observable<SearchItem[]>.

So the subscribe function is receiving Observable<SearchItem[]> and not SearchItem[] as we want.

One workaround would then be to just try doing two subscribes, like so:

  ngOnInit() {
    this.searchField = new FormControl();
    this.searchField.valueChanges
      .debounceTime(400)
      .distinctUntilChanged()
      .map( term => this.itunes.search(term))
      .subscribe( value => { (1)
        value.subscribe( other => console.log(other) ) (2)
      });
  }
1 First subscribe receives Observable<SearchItem[]>.
2 We call subscribe again on each of these observables to get the SearchItem[].

This is a common problem with Observables so there is a better way, we can use another operator called switch.

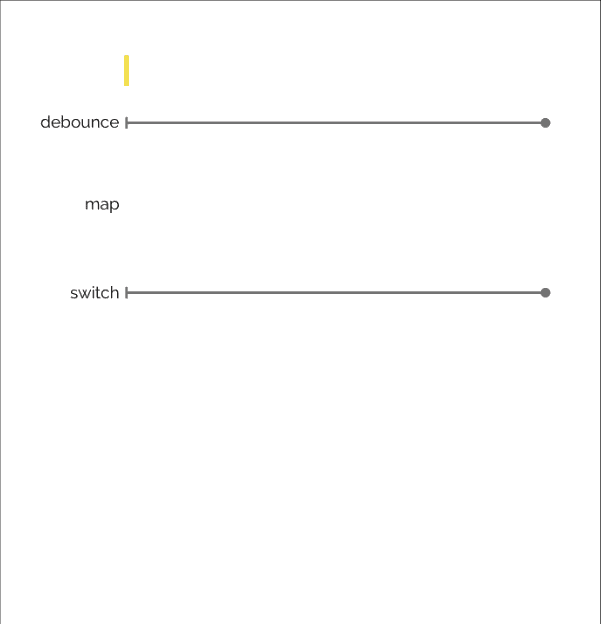

switch expects a stream of Observables, when it get an Observable pushed onto it’s input stream it unsubscribes from any previous Observables and subscribes to the new one and then emits any values from that Observable onto it’s output stream.

To put it another way it coverts Observable<Observable<SearchItem[]>> into Observable<SearchItem[]> which is exactly the problem we are solving with the two subscribes above.

switch animation

Using switch with map is such a common occurrence that there is a combined operator called switchMap, which we’ll use

Our code now looks like this:

ngOnInit() {
  this.searchField = new FormControl();
  this.searchField.valueChanges
    .debounceTime(400)
    .distinctUntilChanged()
    .switchMap( term => this.itunes.search(term))
    .subscribe( value => console.log(value));
}

Important

To use switchMap we need to import it from the RxJS library, like so:

import 'rxjs/add/operator/switchMap';

Rendering results

Now that our observable chain returns Observable<SearchItem[]> we can just assign it to our local results property, like so:

ngOnInit() {
  this.searchField = new FormControl();
  this.results = this.searchField.valueChanges (1)
    .debounceTime(400)
    .distinctUntilChanged()
    .switchMap( term => this.itunes.search(term));
}
1 Store Observable<SearchItem[]> on results.

Note

Remember in our template we are using the async pipe. This does a subscribe on our behalf so we also removed the subscribe from our chain.

Loading indicator

The final thing we need to do is add our loading boolean to the chain, set it to true and false at the right times so our loading message shows correctly, we can do that by using the do operator.

Important

We use do to create side effects in our application, it lets us do things outside of just manipulating items via streams. It should be used infrequently but this is a perfect example, setting state on our component depending on where we are in the processing chain

So now our function looks like so:

ngOnInit() {
  this.searchField = new FormControl();
  this.results = this.searchField.valueChanges
    .debounceTime(400)
    .distinctUntilChanged()
    .do( () => this.loading = true)
    .switchMap( term => this.itunes.search(term))
    .do( () => this.loading = false )
}

Important

We need to import the do operator from RxJS

import 'rxjs/add/operator/do';

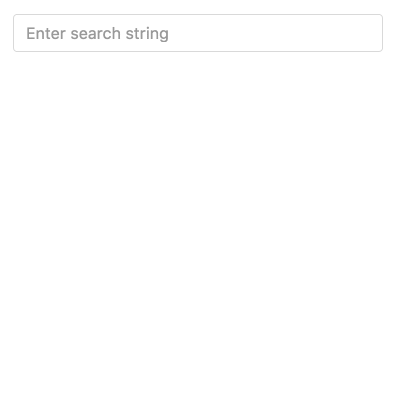

Finally if we run our application we should see something like this:

http observable

Summary

In this lecture we’ve covered, in depth, how to use observables when making HTTP requests.

The goal of this lecture was to show you how you can evolve your application from one that uses just a little bit of observables to one that uses a lot more.

Hopefully you now have a much better idea of how to architect your application using observables.

We could go even further, for instance the loading property could be it’s own observable, how far and how deep to go is up to you. Depending on how comfortable you feel with Observables and how well they match to your use case.

They can be really powerful but at other times they can be a big hindrance with little benefit. In Angular you can use as much or as little reactive programming as you want, it doesn’t prescribe one way or the other.

So far we’ve not dealt with the issue of CORS and we cheated in creating these apps by installing a plugin to chrome which circumnavigates CORS security issues.

In the next lecture we’ll cover how to use JSONP to solve CORS issues, if the API supports JSONP, and how to implement JSONP requests in Angular.

Listing

Listing 1. script.ts
import {NgModule, Component, Injectable} from '@angular/core';
import {BrowserModule} from '@angular/platform-browser';
import {platformBrowserDynamic} from '@angular/platform-browser-dynamic';
import {HttpModule, Http, Response} from '@angular/http';
import {ReactiveFormsModule, FormControl, FormsModule} from '@angular/forms';
import {Observable} from 'rxjs';
import 'rxjs/add/operator/map';
import 'rxjs/add/operator/debounceTime';
import 'rxjs/add/operator/distinctUntilChanged';
import 'rxjs/add/operator/switchMap';
import 'rxjs/add/operator/do';

class SearchItem {
  constructor(public track: string,
              public artist: string,
              public link: string,
              public thumbnail: string,
              public artistId: string) {
  }
}

@Injectable()
export class SearchService {
  apiRoot: string = 'https://itunes.apple.com/search';

  constructor(private http: Http) {
  }

  search(term: string): Observable<SearchItem[]> {
    let apiURL = `${this.apiRoot}?term=${term}&media=music&limit=20`;
    return this.http.get(apiURL)
        .map(res => {
          return res.json().results.map(item => {
            return new SearchItem(
                item.trackName,
                item.artistName,
                item.trackViewUrl,
                item.artworkUrl30,
                item.artistId
            );
          });
        });
  }
}

@Component({
  selector: 'app',
  template: `
<form class="form-inline">
  <div class="form-group">
    <input type="search"
           class="form-control"
           placeholder="Enter search string"
           [formControl]="searchField">
  </div>
</form>

<div class="text-center">
  <p class="lead" *ngIf="loading">Loading...</p>
</div>

<ul class="list-group">
  <li class="list-group-item"
      *ngFor="let track of results | async">
    <img src="{{track.thumbnail}}">
    <a target="_blank"
       href="{{track.link}}">{{ track.track }}
    </a>
  </li>
</ul>
 `
})
class AppComponent {
  private loading: boolean = false;
  private results: Observable<SearchItem[]>;
  private searchField: FormControl;

  constructor(private itunes: SearchService) {
  }

  ngOnInit() {
    this.searchField = new FormControl();
    this.results = this.searchField.valueChanges
        .debounceTime(400)
        .distinctUntilChanged()
        .do(_ => this.loading = true)
        .switchMap(term => this.itunes.search(term))
        .do(_ => this.loading = false)
  }

  doSearch(term: string) {
    this.itunes.search(term)
  }
}

@NgModule({
  imports: [
    BrowserModule,
    ReactiveFormsModule,
    FormsModule,
    HttpModule
  ],
  declarations: [AppComponent],
  bootstrap: [AppComponent],
  providers: [SearchService]
})
class AppModule {
}

platformBrowserDynamic().bootstrapModule(AppModule);

Learn Angular 5 For FREE

I've released my 700 page Kick Starter funded Angular 5 book for FREE
