Model Driven Form Validation

Learning Objectives

  • How to add validation checks to our form via the form model.

  • How to style our form in order to give visual feedback to the user so they know when the fields don’t pass the validation checks.

  • How to add validation error messages to the form to give hints to the user about why the field isn’t passing a validation check.

Validators

Carrying on from the model driven form we started in the previous lecture.

Our form is valid all the time, regardless of what input the user types into the controls.

Validators are rules which an input control has to follow. If the input doesn’t match the rule then the control is said to be invalid.

Since it’s a signup form most of the fields should be required and I would want to specify some more complex validators on the password field to make sure the user is entering a good strong password.

We can apply validators either by adding attributes to the template or by defining them on our FormControls in our model.

To stick to the theme of being model driven we are going to add validators to the form model directly.

Angular comes with a small set of pre-built validators to match the ones we can define via standard HTML5 attributes, namely required, minlegth, maxlength and pattern which we can access from the Validators module.

The first parameter of a FormControl constructor is the initial value of the control, we’ll leave that as empty string. The second parameter contains either a single validator if we only want to apply one, or a list of validators if we want to apply multiple validators to a single control.

Our model then looks something like this:

import { FormGroup, FormControl, Validators } from '@angular/forms';
.
.
.
class ModelFormComponent implements OnInit {
  myform: FormGroup;

  ngOnInit() {
    myform = new FormGroup({
        name: new FormGroup({
            firstName: new FormControl('', Validators.required), (1)
            lastName: new FormControl('', Validators.required),
        }),
        email: new FormControl('', [ (2)
            Validators.required,
            Validators.pattern("[^ @]*@[^ @]*") (3)
        ]),
        password: new FormControl('', [
            Validators.minLength(8), (4)
            Validators.required
        ]),
        language: new FormControl() (5)
    });
  }
}
1 We add a single required validator to mark this control as required.
2 We can also provide an array of validators.
3 We specify a pattern validator which checks whether the email contains a @ character.
4 The minlength validator checks to see if the password is a minimum of 8 characters long.
5 We don’t add any validators to the language select box.

Form control state

The form control instance on our model encapsulates state about the control itself, such as if it is currently valid or if it’s been touched.

Dirty & Pristine

We can get a reference to these form control instances in our template through the controls property of our myform model, for example we can print out the the dirty state of the email field like so:

<pre>Dirty? {{ myform.controls.email.dirty }}</pre>

dirty is true if the user has changed the value of the control.

The opposite of dirty is pristine so if we wrote:

<pre>Pristine? {{ myform.controls.email.pristine }}</pre>

This would be true if the user hasn’t changed the value, and false if the user has.

Touched & Untouched

A controls is said to be touched if the the user focused on the control and then focused on something else. For example by clicking into the control and then pressing tab or clicking on another control in the form.

The difference between touched and dirty is that with touched the user doesn’t need to actually change the value of the input control.

<pre>Touched? {{ myform.controls.email.touched }}</pre>

touched is true of the field has been touched by the user, otherwise it’s false.

The opposite of touched is the property untouched.

Valid & Invalid

We can also check the valid state of the control with:

<pre>Valid? {{ myform.controls.email.valid }}</pre>

valid is true of the field doesn’t have any validators or if all the validators are passing.

Again the opposite of valid is invalid, so we could write:

<pre>Invalid? {{ myform.controls.email.invalid }}</pre>

This would be true if the control was invalid and false if it was valid.

Validation styling

Bootstrap has classes for showing visual feedback for form controls when they are invalid.

For instance if we add the has-danger class to the parent div of the input control with the class of form-group it adds a red border.

Conversely if we add the has-success class it adds a green border.

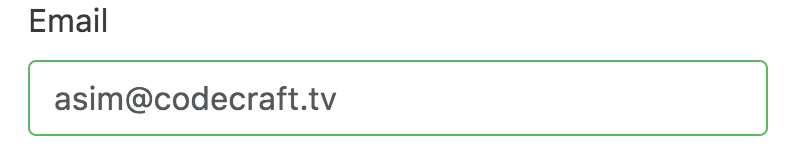

Form Valid
Figure 1. Valid Form Control

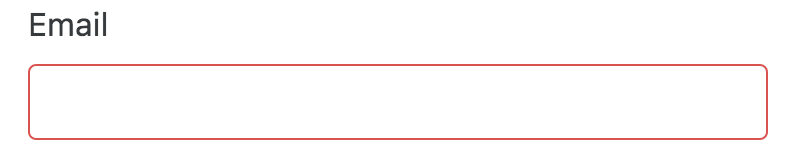

Form Invalid
Figure 2. Invalid Form Control

We can combine bootstrap classes with dirty and invalid FormControl properties and the ngClass directive to give the user some nice visual feedback, like so:

<div class="form-group" [ngClass]="{
  'has-danger': myform.controls.email.invalid && myform.controls.email.dirty, (1)
  'has-success': myform.controls.email.valid && myform.controls.email.dirty (2)
}">
1 If the email is invalid and it’s been touched by the user then we add the has-danger class giving the control a red border.
2 If the email is valid and it’s been touched by the user then we add the has-success class giving the control a green border.

Tip

The reason we check for the dirty property being true is so we don’t show the user visual feedback when the form is first displayed. Instead we only show the user feedback when they have had a chance to edit the field.

Now the input control shows the green border when it’s valid and dirty and red if it’s invalid and dirty.

Writing shorter validation expressions

The above can quickly become cumbersome to use in our templates, especially for things like the nested firstName and lastName controls.

Since the firstName and lastName FormControls exist under the name FormGroup to access those from the template we need to use syntax like this:

<div class="form-group"
       [ngClass]="{
        'has-danger': myform.controls.name.controls.firstName.invalid && myform.controls.name.controls.firstName.dirty,
        'has-success': myform.controls.name.controls.firstName.valid && myform.controls.name.controls.firstName.dirty
}">

The length of the expression quickly becomes unwieldy.

We can help ourselves here by creating local properties on our component to reflect the individual FormControls and binding directly to them in our template, like so:

Listing 1. script.ts
class ModelFormComponent implements OnInit {
  langs: string[] = [
    'English',
    'French',
    'German',
  ];
  myform: FormGroup;
  firstName: FormControl; (1)
  lastName: FormControl;
  email: FormControl;
  password: FormControl;
  language: FormControl;

  ngOnInit() {
    this.createFormControls();
    this.createForm();
  }

  createFormControls() { (2)
    this.firstName = new FormControl('', Validators.required);
    this.lastName = new FormControl('', Validators.required);
    this.email = new FormControl('', [
      Validators.required,
      Validators.pattern("[^ @]*@[^ @]*")
    ]);
    this.password = new FormControl('', [
      Validators.required,
      Validators.minLength(8)
    ]);
    this.language = new FormControl('', Validators.required);
  }

  createForm() { (3)
    this.myform = new FormGroup({
      name: new FormGroup({
        firstName: this.firstName,
        lastName: this.lastName,
      }),
      email: this.email,
      password: this.password,
      language: this.language
    });
  }
}
1 We declare the FormControls as properties of our component. So we can bind to them directly in our tempalte without having to go through the top level myform model.
2 We first create the FormControls.
3 We then construct the myform model from the form controls we created previously and stored as properties on our component.

Now we can bind directly to our individual form controls in our template without having to traverse the tree from the myform instance.

We can therefore re-write the wordy firstName ngClass expression to something much more succinct, like so:

<div class="form-group"
 [ngClass]="{
  'has-danger': firstName.invalid && firstName.dirty,
  'has-success': firstName.valid && firstName.dirty
}">

Validation messages

As well as styling a form when it’s invalid it’s also useful to show the user error messages with helpful hints about how they can make the form valid again.

Taking what we have learnt about form validation styling we can apply the same method to conditionally show or hide an error message.

Bootstrap conveniently has some markup and classes for form controls which we can use to show these error messages, lets add them to our password form control, like so:

<div class="form-group">
  <label>Password</label>
  <input type="password"
         class="form-control"
         formControlName="password">
  <div class="form-control-feedback" (1)
       *ngIf="password.invalid && password.dirty"> (2)
    Field is invalid
  </div>
</div>
  1. The class form-control-feedback shows a message in red if the parent form-group div also has the has-danger class, i.e. when the field is invalid any text under this div will show as red.

  2. We only show the message when the password field is both invalid and dirty.

Now when the input control is both dirty and invalid we show the validation error message "Field is invalid".

However this field has two validators associated with it, the required validator and the minlength validator but with the above solution we only show one generic validation error message. We can’t tell the user what they need to do in order to make the field valid.

How to do we show a separate validation error message for each of the validators?

We can do that by checking another property on our form control called errors.

This is an object which has one entry per validator, the key is the name of the validator and if the value is not null then the validator is failing.

<div class="form-control-feedback" *ngIf="password.errors && (password.dirty || password.touched)">
  <p *ngIf="password.errors.required">Password is required</p>
  <p *ngIf="password.errors.minlength">Password must be 8 characters long</p>
</div>

Note

If the errors object has a key of required it means the control is failing because it’s required and the user hasn’t entered any value into the input field.

Digging a bit deeper into the errors property. The value can contain useful bits of information which we can show the user, for example the minlength validator gives us the requiredLength and actualLength properties.

{
  "minlength": {
    "requiredLength": 8,
    "actualLength": 1
  }
}

We can use this in our validation error message to give the user a bit more help in resolving the issue, like so:

<div class="form-control-feedback"
     *ngIf="password.errors && (password.dirty || password.touched)">
  <p *ngIf="password.errors.required">Password is required</p>
  <p *ngIf="password.errors.minlength">Password must be 8 characters long, we need another {{password.errors.minlength.requiredLength - password.errors.minlength.actualLength}} characters </p>
</div>

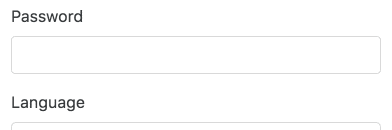

password validation messages
Figure 3. Form Validation Messages

Summary

We can add validators to our model form which check each field for validity.

Can render the controls with styling to show the user when fields are invalid.

Finally we can add validation error messages so the user knows how to make the form valid again.

Next up we’ll look at how to submit and reset a model driven form.

Listing

Listing 2. script.ts
import {
    NgModule,
    Component,
    Pipe,
    OnInit
} from '@angular/core';
import {
    ReactiveFormsModule,
    FormsModule,
    FormGroup,
    FormControl,
    Validators,
    FormBuilder
} from '@angular/forms';
import {BrowserModule} from '@angular/platform-browser';
import {platformBrowserDynamic} from '@angular/platform-browser-dynamic';


@Component({
  selector: 'model-form',
  template: `<form novalidate
      [formGroup]="myform">

  <fieldset formGroupName="name">
    <div class="form-group"
         [ngClass]="{
        'has-danger': firstName.invalid && (firstName.dirty || firstName.touched),
        'has-success': firstName.valid && (firstName.dirty || firstName.touched)
      }">
      <label>First Name</label>
      <input type="text"
             class="form-control"
             formControlName="firstName"
             required>
      <div class="form-control-feedback"
           *ngIf="firstName.errors && (firstName.dirty || firstName.touched)">
        <p *ngIf="firstName.errors.required">First Name is required</p>
      </div>

      <!--
        <pre>Valid? {{ myform.controls.name.controls.firstName.valid }}</pre>
        <pre>Dirty? {{ myform.controls.name.controls.firstName.dirty }}</pre>
      -->
    </div>

    <div class="form-group"
         [ngClass]="{
        'has-danger': lastName.invalid && (lastName.dirty || lastName.touched),
        'has-success': lastName.valid && (lastName.dirty || lastName.touched)
      }">
      <label>Last Name</label>
      <input type="text"
             class="form-control"
             formControlName="lastName"
             required>
      <div class="form-control-feedback"
           *ngIf="lastName.errors && (lastName.dirty || lastName.touched)">
        <p *ngIf="lastName.errors.required">Last Name is required</p>
      </div>
    </div>
  </fieldset>


  <div class="form-group"
       [ngClass]="{
        'has-danger': email.invalid && (email.dirty || email.touched),
        'has-success': email.valid && (email.dirty || email.touched)
   }">
    <label>Email</label>
    <input type="email"
           class="form-control"
           formControlName="email"
           required>
    <div class="form-control-feedback"
         *ngIf="email.errors && (email.dirty || email.touched)">
      <p *ngIf="email.errors.required">Email is required</p>
      <p *ngIf="password.errors.pattern">The email address must contain at least the @ character</p>
    </div>

    <!--
      <pre>Valid? {{ myform.controls.email.valid }}</pre>
      <pre>Dirty? {{ myform.controls.email.dirty }}</pre>
    -->

  </div>

  <div class="form-group"
       [ngClass]="{
        'has-danger': password.invalid && (password.dirty || password.touched),
        'has-success': password.valid && (password.dirty || password.touched)
   }">
    <label>Password</label>
    <input type="password"
           class="form-control"
           formControlName="password"
           required>
    <div class="form-control-feedback"
         *ngIf="password.errors && (password.dirty || password.touched)">
      <p *ngIf="password.errors.required">Password is required</p>
      <p *ngIf="password.errors.minlength">Password must be 8 characters long, we need another {{password.errors.minlength.requiredLength - password.errors.minlength.actualLength}} characters </p>
    </div>
  </div>

  <!--
    <pre>{{ password.errors | json }}</pre>
  -->

  <div class="form-group"
       [ngClass]="{
        'has-danger': language.invalid && (language.dirty || language.touched),
        'has-success': language.valid && (language.dirty || language.touched)
      }">
    <label>Language</label>
    <select class="form-control"
            formControlName="language">
      <option value="">Please select a language</option>
      <option *ngFor="let lang of langs"
              [value]="lang">{{lang}}
      </option>
    </select>
  </div>

  <pre>{{myform.value | json}}</pre>
</form>`
})
class ModelFormComponent implements OnInit {
  langs: string[] = [
    'English',
    'French',
    'German',
  ];
  myform: FormGroup;
  firstName: FormControl;
  lastName: FormControl;
  email: FormControl;
  password: FormControl;
  language: FormControl;


  ngOnInit() {
    this.createFormControls();
    this.createForm();
  }

  createFormControls() {
    this.firstName = new FormControl('', Validators.required);
    this.lastName = new FormControl('', Validators.required);
    this.email = new FormControl('', [
      Validators.required,
      Validators.pattern("[^ @]*@[^ @]*")
    ]);
    this.password = new FormControl('', [
      Validators.required,
      Validators.minLength(8)
    ]);
    this.language = new FormControl('');
  }

  createForm() {
    this.myform = new FormGroup({
      name: new FormGroup({
        firstName: this.firstName,
        lastName: this.lastName,
      }),
      email: this.email,
      password: this.password,
      language: this.language
    });
  }
}


@Component({
  selector: 'app',
  template: `<model-form></model-form>`
})
class AppComponent {
}


@NgModule({
  imports: [
    BrowserModule,
    FormsModule,
    ReactiveFormsModule],
  declarations: [
    AppComponent,
    ModelFormComponent
  ],
  bootstrap: [
    AppComponent
  ],
})
class AppModule {
}

platformBrowserDynamic().bootstrapModule(AppModule);

Learn Angular 5 For FREE

I've released my 700 page Kick Starter funded Angular 5 book for FREE
