ViewChildren & ContentChildren

Learning Objectives

  • Understand the difference between view children and content children of a component.

  • Know how to get references to child components in host components.

Example application

The view children of a given component are the elements used within its template, its view.

We can get a reference to these view children in our component class by using the @ViewChild decorator.

We’ll explain how all this works using the joke application we’ve been working with so far in this course.

We’ve changed the application so that the JokeListComponent shows two jokes in it’s own view and one joke which is content projected from it’s host AppComponent, like so:

Listing 1. JokeListComponent
@Component({
  selector: 'joke-list',
  template: `
<h4>View Jokes</h4>
<joke *ngFor="let j of jokes" [joke]="j"> (1)
  <span class="setup">{{ j.setup }}?</span>
  <h1 class="punchline">{{ j.punchline }}</h1>
</joke>

<h4>Content Jokes</h4>
<ng-content></ng-content>  (2)
`
})
class JokeListComponent  {
  jokes: Joke[] = [
    new Joke("What did the cheese say when it looked in the mirror", "Hello-me (Halloumi)"),
    new Joke("What kind of cheese do you use to disguise a small horse", "Mask-a-pony (Mascarpone)")
  ];
}
1 The component renders jokes in it’s own view.
2 It also projects some content from it’s host component, in our example the other content is going to be a third joke.
Listing 2. AppComponent
@Component({
  selector: 'app',
  template: `
<joke-list>
  <joke [joke]="joke"> (1)
    <span class="setup">{{ joke.setup }}?</span>
    <h1 class="punchline">{{ joke.punchline }}</h1>
  </joke>
</joke-list>
`
})
class AppComponent {
  joke: Joke = new Joke("A kid threw a lump of cheddar at me", "I thought ‘That’s not very mature’");
}
1 Use content projection to inject a third joke into the JokeListComponent.

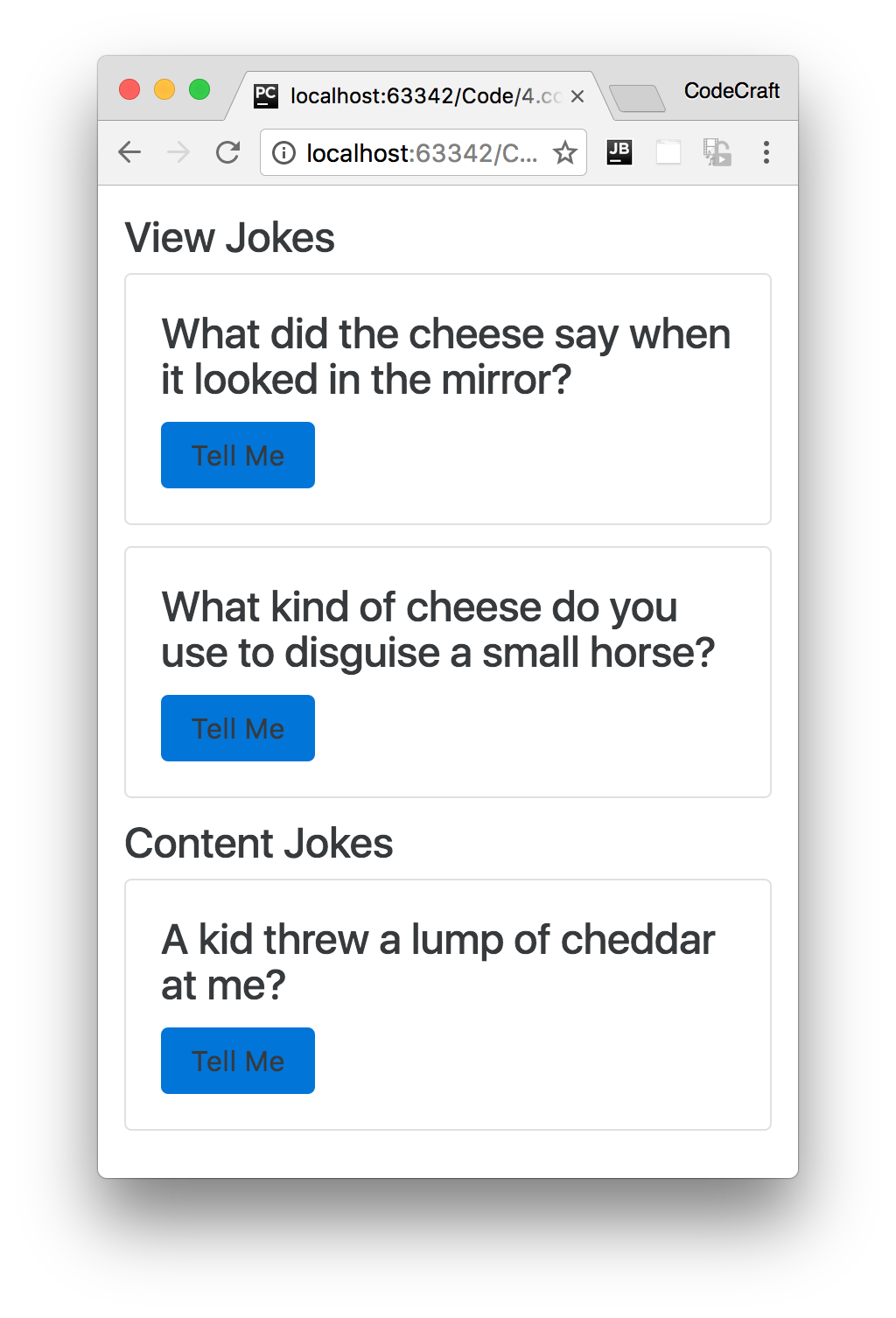

When we view this app now we see 3 jokes, two of which are from the JokeListComponent and the third is projected in from the AppComponent.

viewcontentchildren app

ViewChild

In our JokeListComponent lets add a reference to the child JokeComponents that exists in it’s view.

We do this by using the @ViewChild decorator like so:

import { ViewChild } from '@angular/core';
.
.
.
@Component({
  selector: 'joke-list',
  template: `
<h4 #header>View Jokes</h4>
<joke *ngFor="let j of jokes" [joke]="j">
  <span class="setup">{{ j.setup }}?</span>
  <h1 class="punchline">{{ j.punchline }}</h1>
</joke>
<h4>Content Jokes</h4>
<ng-content></ng-content>
`
})
class JokeListComponent {

  jokes: Joke[] = [
    new Joke("What did the cheese say when it looked in the mirror", "Hello-me (Halloumi)"),
    new Joke("What kind of cheese do you use to disguise a small horse", "Mask-a-pony (Mascarpone)")
  ];

  @ViewChild(JokeComponent) jokeViewChild: JokeComponent; (1)

  constructor() {
    console.log(`new - jokeViewChild is ${this.jokeViewChild}`);
  }
}
1 We are storing a reference to the child JokeComponent in a property called jokeViewChild.

Note

jokeViewChild isn’t an instance of a Joke class, it is the actual instance of the child JokeComponent that exists inside this components view.

We create a new property called jokeViewChild and we pre-pend this with a decorator of @ViewChild. This decorator tells Angular how to find the child component that we want to bind to this property.

@ViewChild decorator means, search inside this components template, it’s view, for this child component.

The parameter we pass as the first argument to @ViewChild is the type of the component we want to search for, if it finds more than one it will just give us the first one it finds.

If we try to print out the reference in the constructor, like the code sample above, undefined will be printed out.

That’s because by the time the constructor is called we haven’t rendered the children yet. We render in a tree down approach so when a parent component is getting constructed it means the children are not yet created.

We can however hook into the lifecycle of the component at the point the view children have been created and that’s with the ngAfterViewInit hook.

To use this we need to make our component implement the interface AfterViewInit.

@Component({
  selector: 'joke-list',
  template: `
<h4 #header>View Jokes</h4>
<joke *ngFor="let j of jokes" [joke]="j">
  <span class="setup">{{ j.setup }}?</span>
  <h1 class="punchline">{{ j.punchline }}</h1>
</joke>
<h4>Content Jokes</h4>
<ng-content></ng-content>
`
})
class JokeListComponent implements AfterViewInit {

  jokes: Joke[] = [
    new Joke("What did the cheese say when it looked in the mirror", "Hello-me (Halloumi)"),
    new Joke("What kind of cheese do you use to disguise a small horse", "Mask-a-pony (Mascarpone)")
  ];

  @ViewChild(JokeComponent) jokeViewChild: JokeComponent;

  constructor() {
    console.log(`new - jokeViewChild is ${this.jokeViewChild}`);
  }

  ngAfterViewInit() {
    console.log(`ngAfterViewInit - jokeViewChild is ${this.jokeViewChild}`);
  }
}

In the ngAfterViewInit function jokeViewChild has been initialised and we can see it logged in the console.

ViewChildren

The above isn’t so useful in our case since we have multiple joke children components. We can solve that by using the alternative @ViewChildren decorator along side the QueryList generic type.

import { ViewChildren, QueryList } from '@angular/core';
.
.
.
class JokeListComponent implements AfterViewInit {

  jokes: Joke[] = [
    new Joke("What did the cheese say when it looked in the mirror", "Hello-me (Halloumi)"),
    new Joke("What kind of cheese do you use to disguise a small horse", "Mask-a-pony (Mascarpone)")
  ];

  @ViewChild(JokeComponent) jokeViewChild: JokeComponent;
  @ViewChildren(JokeComponent) jokeViewChildren: QueryList<JokeComponent>; (1)

  ngAfterViewInit() {
    console.log(`ngAfterViewInit - jokeViewChild is ${this.jokeViewChild}`);
    let jokes: JokeComponent[] = this.jokeViewChildren.toArray(); (2)
    console.log(jokes);
  }
}
1 We use the @ViewChildren decorator which matches all JokeComponent`s and stores them in a `QueryList called jokeViewChildren.
2 We can convert our QueryList of JokeComponent`s into an array by calling `toArray()

When we run the above application we see two JokeComponents printed to the console, like so:

Array[2]
> 0: JokeComponent
> 1: JokeComponent

Important

The reason we see 2 jokes printed out and 3 is because only two of the jokes are view children the other joke is a content child. We cover content children in the end of ths lecture.

ViewChild referencing a template local variable

One practical application of @ViewChild is to get access to template local variables in our component class.

In the past we’ve said that template local variables are just that, local to the template.

But as the first param to the @ViewChild decorator we can also pass the name of a template local variable and have Angular store a reference to that variable on our component, like so:

@Component({
  selector: 'joke-list',
  template: `
<h4 #header>View Jokes</h4>
<joke *ngFor="let j of jokes" [joke]="j">
  <span class="setup">{{ j.setup }}?</span>
  <h1 class="punchline">{{ j.punchline }}</h1>
</joke>
<h4>Content Jokes</h4>
<ng-content></ng-content>
`
})
class JokeListComponent implements AfterViewInit {

  jokes: Joke[] = [
    new Joke("What did the cheese say when it looked in the mirror", "Hello-me (Halloumi)"),
    new Joke("What kind of cheese do you use to disguise a small horse", "Mask-a-pony (Mascarpone)")
  ];

  @ViewChild(JokeComponent) jokeViewChild: JokeComponent;
  @ViewChildren(JokeComponent) jokeViewChildren: QueryList<JokeComponent>;
  @ViewChild("header") headerEl: ElementRef; (1)

  ngAfterViewInit() {
    console.log(`ngAfterViewInit - jokeViewChild is ${this.jokeViewChild}`);

    let jokes: JokeComponent[] = this.jokeViewChildren.toArray();
    console.log(jokes);

    console.log(`ngAfterViewInit - headerEl is ${this.headerEl}`);
    //noinspection TypeScriptUnresolvedVariable
    this.headerEl.nativeElement.textContent = "Best Joke Machine"; (2)
  }
}
1 The type of our template variable is an ElementRef, which is a low level reference to any element in the DOM. We are requesting a reference to the header template variable which points to the first <h4> element in the template.
2 Since headerEl is an ElementRef we can interact with the DOM directly and change the title of our header to Best Joke Machine.

Note

It’s not recommended to interact with the DOM directly with an ElementRef since that results in code that’s not very portable.

ContentChild & ContentChildren

The concept of a content child is similar to that of a view child but the content children of the given component are the child elements that are projected into the component from the host component.

In our example application we are projecting one joke in from the host AppComponent.

To get a reference to that child we can use either the @ContentChild or the @ContentChildren decorators. They work in similar ways to the view child counterparts, @ContentChild returns one child and @ContentChildren returns a QueryList.

Lets use @ContentChild to get a reference to the third joke that is projected in, like so:

import { ContentChildren, ContentChild } from '@angular/core';
.
.
.
class JokeListComponent implements AfterContentInit, AfterViewInit { (1)

  jokes: Joke[] = [
    new Joke("What did the cheese say when it looked in the mirror", "Hello-me (Halloumi)"),
    new Joke("What kind of cheese do you use to disguise a small horse", "Mask-a-pony (Mascarpone)")
  ];

  @ViewChild(JokeComponent) jokeViewChild: JokeComponent;
  @ViewChildren(JokeComponent) jokeViewChildren: QueryList<JokeComponent>;
  @ViewChild("header") headerEl: ElementRef;

  @ContentChild(JokeComponent) jokeContentChild: JokeComponent; (2)

  ngAfterContentInit() { (3)
    console.log(`ngAfterContentInit - jokeContentChild is ${this.jokeContentChild}`);
  }

  ngAfterViewInit() {
    console.log(`ngAfterViewInit - jokeViewChild is ${this.jokeViewChild}`);

    let jokes: JokeComponent[] = this.jokeViewChildren.toArray();
    console.log(jokes);

    console.log(`ngAfterViewInit - headerEl is ${this.headerEl}`);
    this.headerEl.nativeElement.textContent = "Best Joke Machine";
  }
}
1 Just like before we need to tap into one of the component lifecycle hooks, this time it’s AfterContentInit
2 We create a jokeContentChild property and bind it to the content child by using the @ContentChild decorator.
3 By the time the ngAfterContentInit hook is run the jokeContentChild property is set to the content child.

Tip

You can implement multiple interfaces just by separating them with a ,.

If we logged jokeContentChild in our constructor it would again log undefined, since it’s not actually initialised at that point.

Content children are only visible by the time the AfterContentInit lifecycle hook has run.

Summary

An Angular application is composed from a number of components nested together.

These components can nest in two ways, as view children, in the template for that component. Or they can nest as content children, via content projection from a host component.

As developers of our components we can get access to these child components via the @ViewChild and @ContentChild (and @ViewChildren and @ContentChildren) decorators.

View children of a component are the components and elements in this components view.

Content children of a component are the components and elements that are projected into this components view by a host component.

View children are only initialised by the time the AfterViewInit lifecycle phase has been run.

Content children are only initialised by the time the AfterContentInit lifecycle phase has been run.

Listing

Listing 3. script.ts
import {platformBrowserDynamic} from '@angular/platform-browser-dynamic';
import {
    Component,
    NgModule,
    Input,
    Output,
    EventEmitter,
    ViewEncapsulation,
    SimpleChanges,
    OnChanges,
    OnInit,
    DoCheck,
    AfterContentInit,
    AfterContentChecked,
    AfterViewInit,
    AfterViewChecked,
    OnDestroy,
    ViewChild,
    ViewChildren,
    ContentChild,
    ContentChildren,
    ElementRef,
    QueryList
} from '@angular/core';
import {BrowserModule} from '@angular/platform-browser';

class Joke {
  public setup: string;
  public punchline: string;
  public hide: boolean;

  constructor(setup: string, punchline: string) {
    this.setup = setup;
    this.punchline = punchline;
    this.hide = true;
  }

  toggle() {
    this.hide = !this.hide;
  }
}

@Component({
  selector: 'joke',
  template: `
<div class="card card-block">
  <h4 class="card-title">
    <ng-content select=".setup"></ng-content>
  </h4>
  <p class="card-text"
     [hidden]="data.hide">
    <ng-content select=".punchline"></ng-content>
  </p>
  <a class="btn btn-primary"
     (click)="data.toggle()">Tell Me
  </a>
</div>
`
})
class JokeComponent {

  @Input('joke') data: Joke;
}

@Component({
  selector: 'joke-list',
  template: `
<h4 #header>View Jokes</h4>
<joke *ngFor="let j of jokes" [joke]="j">
  <span class="setup">{{ j.setup }}?</span>
  <h1 class="punchline">{{ j.punchline }}</h1>
</joke>
<h4>Content Jokes</h4>
<ng-content></ng-content>
`
})
class JokeListComponent implements OnInit,
    AfterContentInit,
    AfterViewInit {

  jokes: Joke[] = [
    new Joke("What did the cheese say when it looked in the mirror", "Hello-me (Halloumi)"),
    new Joke("What kind of cheese do you use to disguise a small horse", "Mask-a-pony (Mascarpone)")
  ];

  @ViewChild(JokeComponent) jokeViewChild: JokeComponent;
  @ViewChildren(JokeComponent) jokeViewChildren: QueryList<JokeComponent>;
  @ViewChild("header") headerEl: ElementRef;
  @ContentChild(JokeComponent) jokeContentChild: JokeComponent;

  constructor() {
    console.log(`new - jokeViewChild is ${this.jokeViewChild}`);
    console.log(`new - jokeContentChild is ${this.jokeContentChild}`);
  }

  ngAfterContentInit() {
    console.log(`ngAfterContentInit - jokeContentChild is ${this.jokeContentChild}`);
  }

  ngAfterViewInit() {
    console.log(`ngAfterViewInit - jokeViewChild is ${this.jokeViewChild}`);

    let jokes: JokeComponent[] = this.jokeViewChildren.toArray();
    console.log(jokes);

    console.log(`ngAfterViewInit - headerEl is ${this.headerEl}`);
    this.headerEl.nativeElement.textContent = "Best Joke Machine";
  }
}


@Component({
  selector: 'app',
  template: `
<joke-list>
  <joke [joke]="joke">
    <span class="setup">{{ joke.setup }}?</span>
    <h1 class="punchline">{{ joke.punchline }}</h1>
  </joke>
</joke-list>
`
})
class AppComponent {
  joke: Joke = new Joke("A kid threw a lump of cheddar at me", "I thought ‘That’s not very mature’");
}

@NgModule({
  imports: [BrowserModule],
  declarations: [
    AppComponent,
    JokeComponent,
    JokeListComponent
  ],
  bootstrap: [AppComponent]
})
export class AppModule {
}

platformBrowserDynamic().bootstrapModule(AppModule);

Learn Angular 5 For FREE

I've released my 700 page Kick Starter funded Angular 5 book for FREE
