Custom Pipes

Learning Objectives

  • Know how to use the @Pipe decorator to create pipes.

  • Know how to pass in parameters to custom pipes.

Pipe decorator

One pipe I really find useful when building web applications is a default pipe, which I use for things like avatar images.

I use this pipe in an image field, like so:

<img [src]="imageUrl | default:'<default-image-url>'"/>

The pipe is called default and we pass to it a default image to use if the imageUrl variable is blank.

To create a pipe we use the @Pipe decorator and annotate a class like so:

import { Pipe } from '@angular/core';
.
.
.
@Pipe({
  name:"default"
})
class DefaultPipe { }

The name parameter for the Pipe decorator is how the pipe will be called in templates.

Transform function

The actual logic for the pipe is put in a function called transform on the class, like so:

class DefaultPipe {
  transform(value: string, fallback: string): string {
    let image = "";
    if (value) {
      image = value;
    } else {
      image = fallback;
    }
     return image;
  }
}

The first argument to the transform function is the value that is passed into the pipe, i.e. the thing that goes before the | in the expression.

The second parameter to the transform function is the first param we pass into our pipe, i.e. the thing that goes after the : in the expression.

Specifically with this example:

@Component({
  selector: 'app',
  template: `
  <img [src]="imageUrl | default:'http://s3.amazonaws.com/uifaces/faces/twitter/sillyleo/128.jpg'"/>
 `
})
class AppComponent {
  imageUrl: string = "";
}
  • value gets passed imageUrl which is blank.

  • fallback gets passed 'http://s3.amazonaws.com/uifaces/faces/twitter/sillyleo/128.jpg'

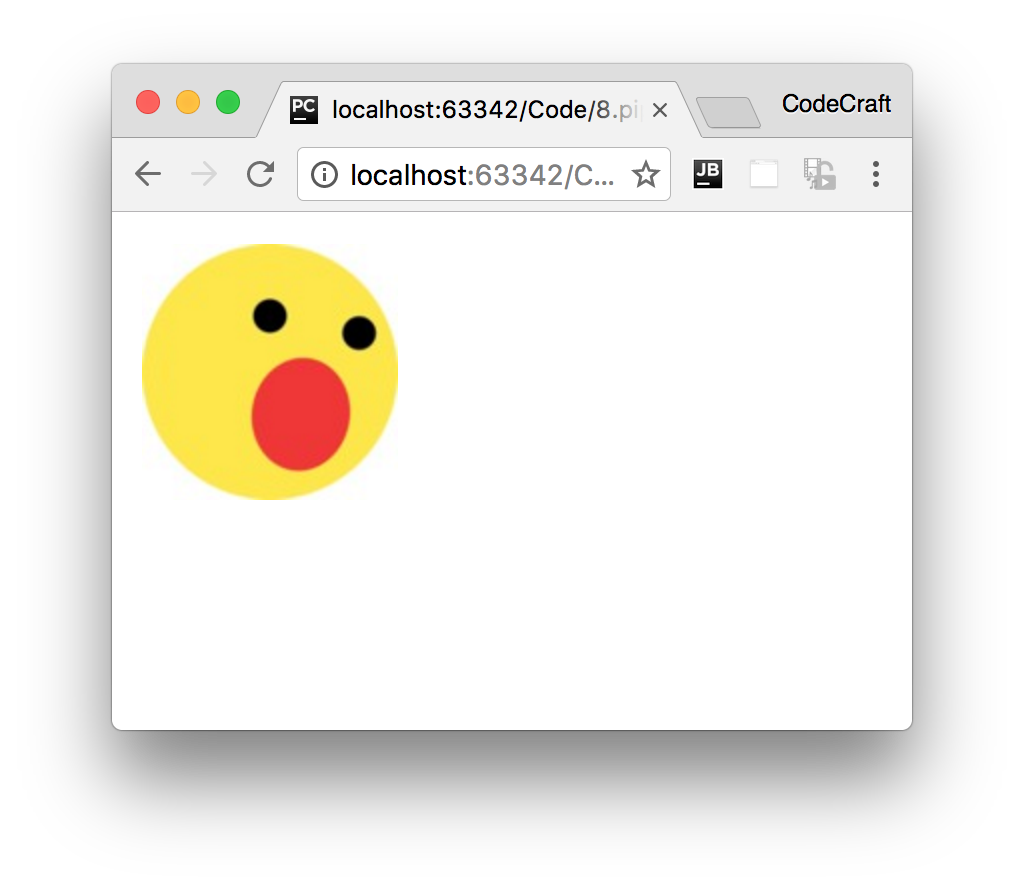

When we run the above, since imageUrl is blank the default pipe uses the default image which is passed in, like so:

default pipe part1

Multiple parameters

Finally we want to support an optional third param to our pipe called forceHttps, if the image selected doesn’t use https the pipe will convert the url to one that does use https.

To support additional parameters in pipes we just add more parameters to our transform function.

Because this one is optional and we are using TypeScript we can define the new param and also give it a default value of false.

class DefaultPipe {
  transform(value: string, fallback: string, forceHttps: boolean = false): string {
    let image = "";
    if (value) {
      image = value;
    } else {
      image = fallback;
    }
    if (forceHttps) {
      if (image.indexOf("https") == -1) {
        image = image.replace("http", "https");
      }
    }
    return image;
  }
}

And to use this optional param we just extend the pipe syntax in our template with another :, like so:-

<img [src]="imageUrl | default:'http://s3.amazonaws.com/uifaces/faces/twitter/sillyleo/128.jpg':true"/> (1)
1 Notice the last :true at the end of the pipe expression.

Now we force the image url to use the https protocol.

Summary

Creating a pipe is very simple in Angular. We just decorate a class with the @Pipe decorator, provide a name and a transform function and we are done.

Listing

Listing 1. script.ts
import {NgModule, Component, Pipe} from '@angular/core';
import {BrowserModule} from '@angular/platform-browser';
import {platformBrowserDynamic} from '@angular/platform-browser-dynamic';
import {Observable} from 'rxjs/Rx';


@Pipe({
  name: "default"
})
class DefaultPipe {
  transform(value: string, fallback: string, forceHttps: boolean = false): string {
    let image = "";
    if (value) {
      image = value;
    } else {
      image = fallback;
    }

    if (forceHttps) {
      if (image.indexOf("https") == -1) {
        image = image.replace("http", "https");
      }
    }

    return image;
  }
}

@Component({
  selector: 'app',
  template: `
  <img [src]="imageUrl | default:'http://s3.amazonaws.com/uifaces/faces/twitter/sillyleo/128.jpg':true"/>
 `
})
class AppComponent {
  imageUrl: string = "";
}


@NgModule({
  imports: [BrowserModule],
  declarations: [AppComponent,
    DefaultPipe
  ],
  bootstrap: [AppComponent],
})
class AppModule {

}

platformBrowserDynamic().bootstrapModule(AppModule);
