NgIf & NgSwitch

In this video I'm using an online editor called Plunker to write and run Angular code. The book and code has since been updated to use StackBlitz instead. To understand more about why and the differences between read this.

View Code

Run Code

Learning Objectives
NgIf
NgSwitch
Summary
Listing

Learning Objectives

Know how to conditionally add or remove an element from the DOM using the NgIf directive.
Know how to conditionally add or remove elements from the DOM using the NgSwitch directive.

NgIf

The NgIf directive is used when you want to display or remove an element based on a condition.

If the condition is false the element the directive is attached to will be removed from the DOM.

Important

The difference between [hidden]='false' and *ngIf='false' is that the first method simply hides the element. The second method with ngIf removes the element completely from the DOM.

We define the condition by passing an expression to the directive which is evaluated in the context of its host component.

The syntax is: *ngIf="<condition>"

Let’s use this in an example, we’ve taken the same code sample as we used for the NgFor lecture but changed it slightly. Each person now has an age as well as a name.

Let’s add an NgIf directive to the template so we only show the element if the age is less than 30, like so:

@Component({
  selector: 'ngif-example',
  template: `
<h4>NgIf</h4>
<ul *ngFor="let person of people">
  <li *ngIf="person.age < 30"> (1)
  {{ person.name }} ({{ person.age }})
  </li>
</ul>
`
})
class NgIfExampleComponent {

  people: any[] = [
    {
      "name": "Douglas  Pace",
      "age": 35
    },
    {
      "name": "Mcleod  Mueller",
      "age": 32
    },
    {
      "name": "Day  Meyers",
      "age": 21
    },
    {
      "name": "Aguirre  Ellis",
      "age": 34
    },
    {
      "name": "Cook  Tyson",
      "age": 32
    }
  ];
}

1	The `NgIf` directive removes the `li` element from the DOM if `person.age` is less than 30.

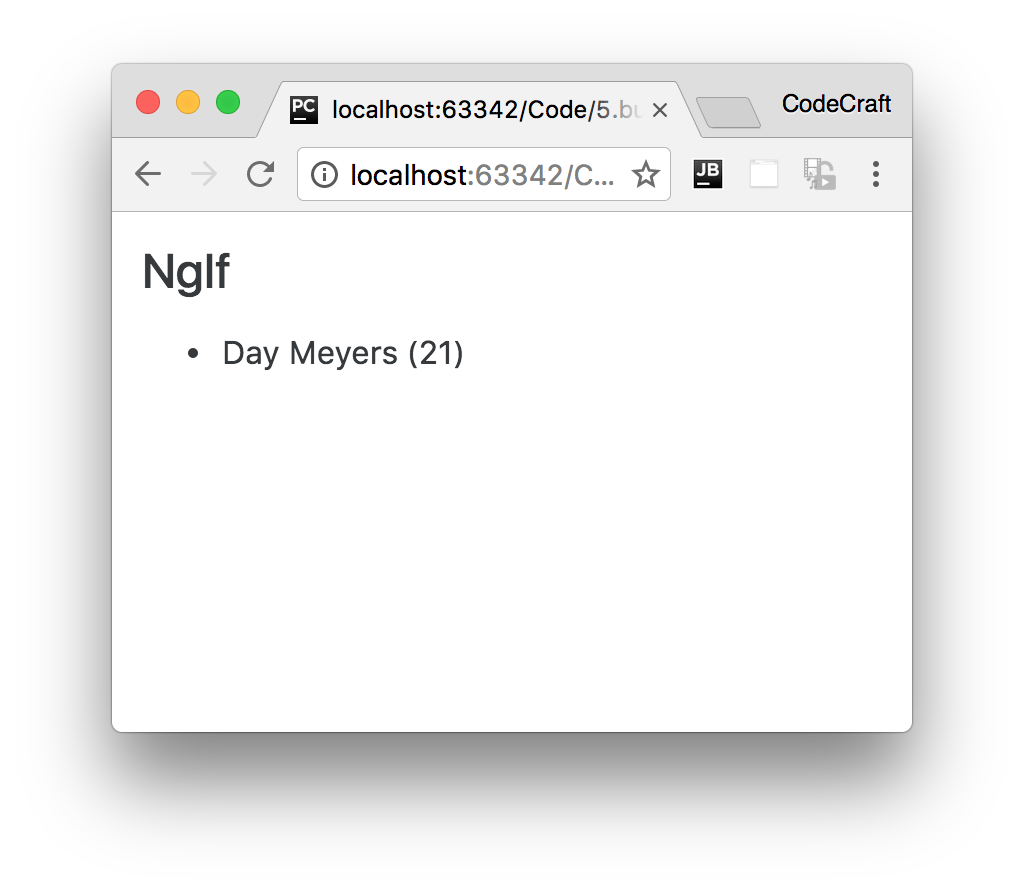

If we ran the above we would see:

Important

We can’t have two structural directives, directives starting with a *, attached to the same element.

The below code would not work:

<ul *ngFor="let person of people" *ngIf="person.age < 30">
  <li>{{ person.name }}</li>
</ul>

Note

This is exactly the same as Angular 1’s ng-if directive however Angular doesn’t have a built-in alternative for ng-show. To achieve something similar you can bind to the [hidden] property or use the NgStyle or NgClass directives we cover later in this section.

NgSwitch

Let’s imagine we wanted to print peoples names in different colours depending on where they are from. Green for UK, Blue for USA, Red for HK.

With Bootstrap we can change the text color by using the text-danger, text-success, text-warning and text-primary classes.

We could solve this by having a series of *ngIf statements, like so:

<ul *ngFor="let person of people">
  <li *ngIf="person.country ==='UK'"
      class="text-success">{{ person.name }} ({{ person.country }})
  </li>
  <li *ngIf="person.country === 'USA'"
      class="text-primary">{{ person.name }} ({{ person.country }})
  </li>
  <li *ngIf="person.country === 'HK'"
      class="text-danger">{{ person.name }} ({{ person.country }})
  </li>
  <li *ngIf="person.country !== 'HK' && person.country !== 'UK' && person.country !== 'USA'"
      class="text-warning">{{ person.name }} ({{ person.country }})
  </li>
</ul>

This initially seems to make sense until we try to create our else style element. We have to check to see if the person is not from any of the countries we have specified before. Resulting in a pretty long ngIf expression and it will only get worse the more countries we add.

Most languages, including JavaScript, have a language construct called a switch statement to solve this kind of problem. Angular also provides us with similar functionality via something called the NgSwitch directive.

This directive allows us to render different elements depending on a given condition, in fact the NgSwitch directive is actually a number of directives working in conjunction, like so:

Listing 1. script.ts

@Component({
  selector: 'ngswitch-example',
  template: `<h4>NgSwitch</h4>
<ul *ngFor="let person of people"
    [ngSwitch]="person.country"> (1)

  <li *ngSwitchCase="'UK'" (2)
      class="text-success">{{ person.name }} ({{ person.country }})
  </li>
  <li *ngSwitchCase="'USA'"
      class="text-primary">{{ person.name }} ({{ person.country }})
  </li>
  <li *ngSwitchCase="'HK'"
      class="text-danger">{{ person.name }} ({{ person.country }})
  </li>
  <li *ngSwitchDefault (3)
      class="text-warning">{{ person.name }} ({{ person.country }})
  </li>
</ul>`
})
class NgSwitchExampleComponent {

  people: any[] = [
    {
      "name": "Douglas  Pace",
      "age": 35,
      "country": 'MARS'
    },
    {
      "name": "Mcleod  Mueller",
      "age": 32,
      "country": 'USA'
    },
    {
      "name": "Day  Meyers",
      "age": 21,
      "country": 'HK'
    },
    {
      "name": "Aguirre  Ellis",
      "age": 34,
      "country": 'UK'
    },
    {
      "name": "Cook  Tyson",
      "age": 32,
      "country": 'USA'
    }
  ];
}

We bind an expression to the ngSwitch directive.
The ngSwitchCase directive lets us define a condition which if it matches the expression in (1) will render the element it’s attached to.
If no conditions are met in the switch statement it will check to see if there is an ngSwitchDefault directive, if there is it will render the element that’s attached to, however it is optional — if it’s not present it simply won’t display anything if no matching ngSwitchCase directive is found.

The key difference between the ngIf solution is that by using NgSwitch we evaluate the expression only once and then choose the element to display based on the result.

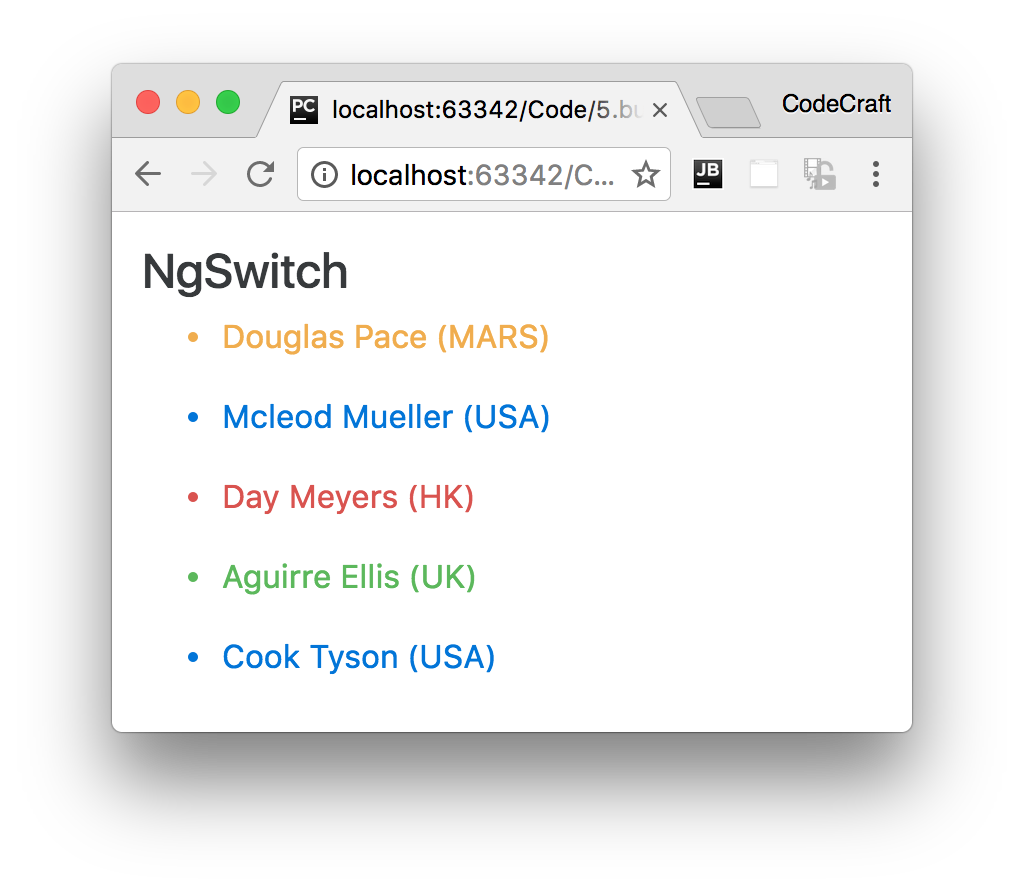

If we ran the above we would see:

Note

The use of NgSwitch here is just for example and isn’t an efficient way of solving this problem. We would use either the NgStyle or NgClass directives which we’ll cover in the next lecture.

Summary

With NgIf we can conditionally add or remove an element from the DOM.

If we are faced with multiple conditions a cleaner alternative to multiple nested NgIf statements is the NgSwitch series of directives.

Listing

Listing 2. main.ts

import {NgModule, Component} from '@angular/core';
import {BrowserModule} from '@angular/platform-browser';
import {platformBrowserDynamic} from '@angular/platform-browser-dynamic';

@Component({
  selector: 'ngif-example',
  template: `
<h4>NgIf</h4>
<ul *ngFor="let person of people">
  <li *ngIf="person.age < 30">
    {{ person.name }} ({{ person.age }})
  </li>
</ul>
`
})
class NgIfExampleComponent {

  people: any[] = [
    {
      "name": "Douglas  Pace",
      "age": 35
    },
    {
      "name": "Mcleod  Mueller",
      "age": 32
    },
    {
      "name": "Day  Meyers",
      "age": 21
    },
    {
      "name": "Aguirre  Ellis",
      "age": 34
    },
    {
      "name": "Cook  Tyson",
      "age": 32
    }
  ];
}


@Component({
  selector: 'ngswitch-example',
  template: `<h4>NgSwitch</h4>
<ul *ngFor="let person of people"
    [ngSwitch]="person.country">
  <li *ngSwitchCase="'UK'"
      class="text-success">
    {{ person.name }} ({{ person.country }})
  </li>
  <li *ngSwitchCase="'USA'"
      class="text-primary">
    {{ person.name }} ({{ person.country }})
  </li>
  <li *ngSwitchCase="'HK'"
      class="text-danger">
    {{ person.name }} ({{ person.country }})
  </li>
  <li *ngSwitchDefault
      class="text-warning">
    {{ person.name }} ({{ person.country }})
  </li>
</ul>`
})
class NgSwitchExampleComponent {

  people: any[] = [
    {
      "name": "Douglas  Pace",
      "age": 35,
      "country": 'MARS'
    },
    {
      "name": "Mcleod  Mueller",
      "age": 32,
      "country": 'USA'
    },
    {
      "name": "Day  Meyers",
      "age": 21,
      "country": 'HK'
    },
    {
      "name": "Aguirre  Ellis",
      "age": 34,
      "country": 'UK'
    },
    {
      "name": "Cook  Tyson",
      "age": 32,
      "country": 'USA'
    }
  ];
}


@Component({
  selector: 'directives-app',
  template: `
  <ngswitch-example></ngswitch-example>
  <ngif-example></ngif-example>
 `
})
class DirectivesAppComponent {
}


@NgModule({
  imports: [BrowserModule],
  declarations: [
    NgIfExampleComponent,
    NgSwitchExampleComponent,
    DirectivesAppComponent],
  bootstrap: [DirectivesAppComponent]
})
class AppModule {

}

platformBrowserDynamic().bootstrapModule(AppModule);

Caught a mistake or want to contribute to the book? Edit this page on GitHub!
