Architecting with Components

In this video I'm using an online editor called Plunker to write and run Angular code. The book and code has since been updated to use StackBlitz instead. To understand more about why and the differences between read this.

Learning Objectives
Process
Data Flow
Summary

Learning Objectives

Know how to architect an angular Application.

Process

When building a new Angular application, we start by:

Breaking down an applications into seperate Components.
For each component we describe its resonsibilities.
Once we’ve desribed the responsibilites we then describe its inputs & outputs, its public facing interface.

Take for instance this simple example.

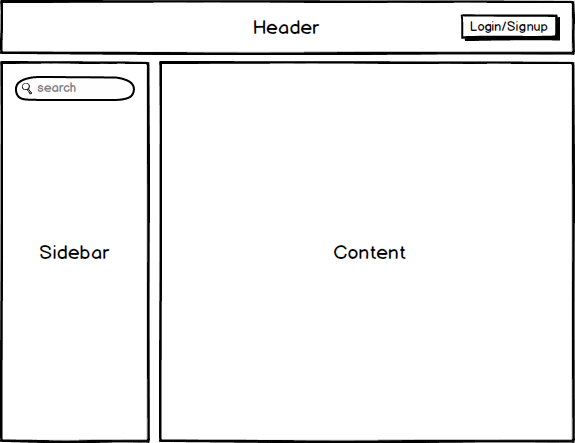

We have a basic application with a Header, Sidebar and Content area, we would implement each of these as their own Component. The next stage is for each component to list out the responsibilities, inputs and outputs, like so:

HeaderComponent

Responsibilities

All aspects of authentication. Letting the user login/signup and logout.

Inputs

None

Outputs

LoginChanged — An output event that is fired when the users login state changes.

SidebarComponent

Responsibilities

Performing searches

Inputs

None

Outputs

SearchTermChanged — An output event that is fired when a user performs a search, $event contains the search term.

ContentComponent

Responsibilities

Showing the search results.

Inputs

SearchTerm the search term that we want to filter the results by.

Outputs

None

Tip

Listing the inputs and outputs and what area this Component is responsible for helps to ensure the Components are architected correctly. The goal is for each Component to have a well defined boundary.

Data Flow

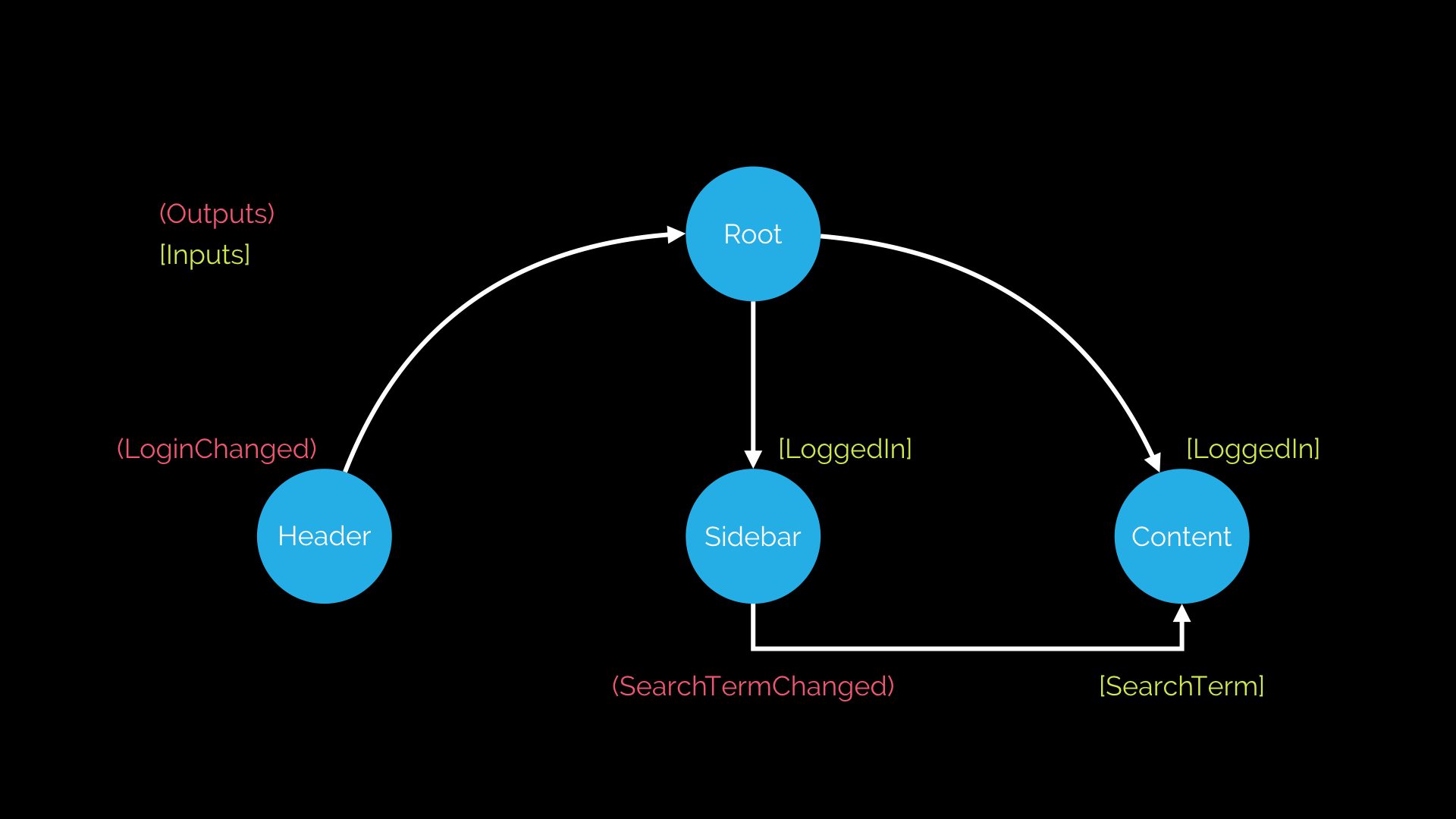

When we link up the Components above with our applications root Component the flow of data between all the inputs and outputs might look something like this:

The actual binding of inputs and outputs happens in HTML, in the templates of Components. The template for our root Component might end up looking like so:

<header (loginChanged)="loggedIn = $event"></header>
<sidebar (searchTermChanged)="searchTerm = $event"></sidebar>
<content [searchTerm]="searchTerm"></content>

Data flow describes how we glue Components together through their inputs and outputs.

Closely looking at the diagram above an interesting fact occurs; with one-way data binding, inputs go down the tree, outputs go up the tree. With one-way data binding reasoning about your application becomes a lot simpler, we can trace through the flow of events in our application easily.

Summary

Architecting an Angular application means understanding that it’s just a tree of Components, each Component has some inputs and outputs and should have a clear responsibility with respect to the rest of the application.

Components are composable, so we might go a step further and include a LoginButtonComponent in our HeaderComponent. But only if we would want to re-use the LoginButtonComponent independently of the HeaderComponent.
