  1. Angular
  2. Dependency Injection & Providers
  3. NgModule.providers vs Component.providers vs Component.viewProviders

NgModule.providers vs Component.providers vs Component.viewProviders


We can configure injectors in Angular by:

  1. providers on NgModule.

  2. providers on Components and Directives.

  3. viewProviders on Components.

So the question is where do you configure your provider?

Understanding where to configure your provider is a key piece of understanding how to architect your application, so we are going to explain this via a real practical example.

Learning Objectives

  • Know the difference between configuring a provider on an NgModule, a component’s or directive’s providers property, and a component’s viewProviders property.

Setup

We create a class called SimpleService which has one property called value which holds a string.

class SimpleService {
  value: string;
}

We also have a component called ParentComponent which has a child component called ChildComponent.

@Component({
 selector: 'child',
 template: `
<div class="child">
   <p>Child</p>
   {{ service.value }} (1)
</div>
`
})
class ChildComponent {
  constructor(private service: SimpleService) { } (2)
}
1 We use string interpolation to bind to the value property of SimpleService.
2 We inject an instance of SimpleService into the constructor.
@Component({
 selector: 'parent',
 template: `
<div class="parent">
   <p>Parent</p>
   <form novalidate>
        <div class="form-group">
        <input type="text"
               class="form-control"
               name="value"
               [(ngModel)]="service.value"> (1)
      </div>
  </form>
  <child></child> (2)
</div>
`
})
class ParentComponent {
  constructor(private service: SimpleService) { } (3)
}
1 We use two-way data binding to bind to the value property of SimpleService.
2 We render the ChildComponent inside this ParentComponent.
3 We inject an instance of SimpleService into the constructor.

The ParentComponent has just one input box which reads and writes to the SimpleService value property using two-way ngModel binding, the ChildComponent just renders the value to the screen with {{ }}.

We render two side by side <parent> tags in our root AppComponent module, like so:

@Component({
 selector: 'app',
 template: `
 <div class="row">
  <div class="col-xs-6">
    <parent></parent>
  </div>
  <div class="col-xs-6">
    <parent></parent>
  </div>
</div>
 `
})
class AppComponent {
}

We set up our NgModule and bootstrap it, like so:

@NgModule({
  imports:  [ BrowserModule, FormsModule ],
  declarations:  [ AppComponent, ParentComponent, ChildComponent ],
  bootstrap:  [ AppComponent ]
})
class AppModule { }

platformBrowserDynamic().bootstrapModule(AppModule);

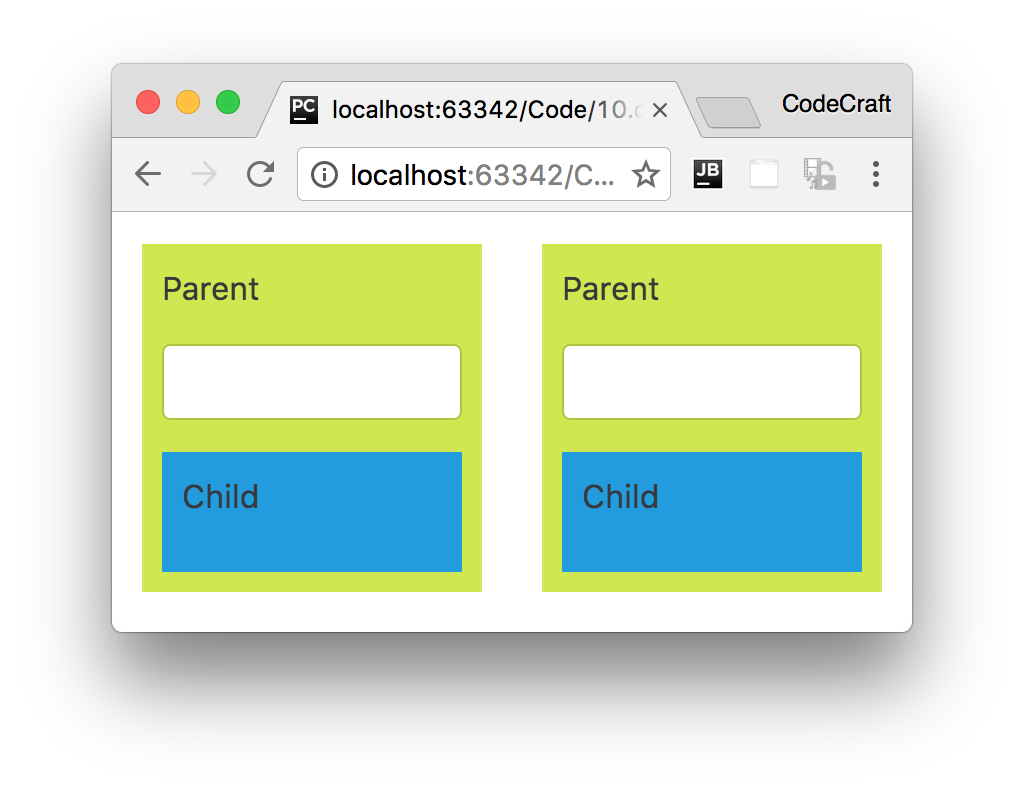

In the end when we run our application we should end up with something that looks like this:

di example

Note

We have also added some CSS styles on our component which has been removed from the above code, the full code can be found in the listing at the end of this lecture.

NgModule.providers

We’ll first configure our SimpleService on the root NgModule, like so:

@NgModule({
  imports:  [ BrowserModule, FormsModule ],
  declarations:  [ AppComponent, ParentComponent, ChildComponent ],
  bootstrap:  [ AppComponent ],
  providers: [ SimpleService ] (1)
})
class AppModule { }
1 We’ve configured our NgModule with a class provider of SimpleService.

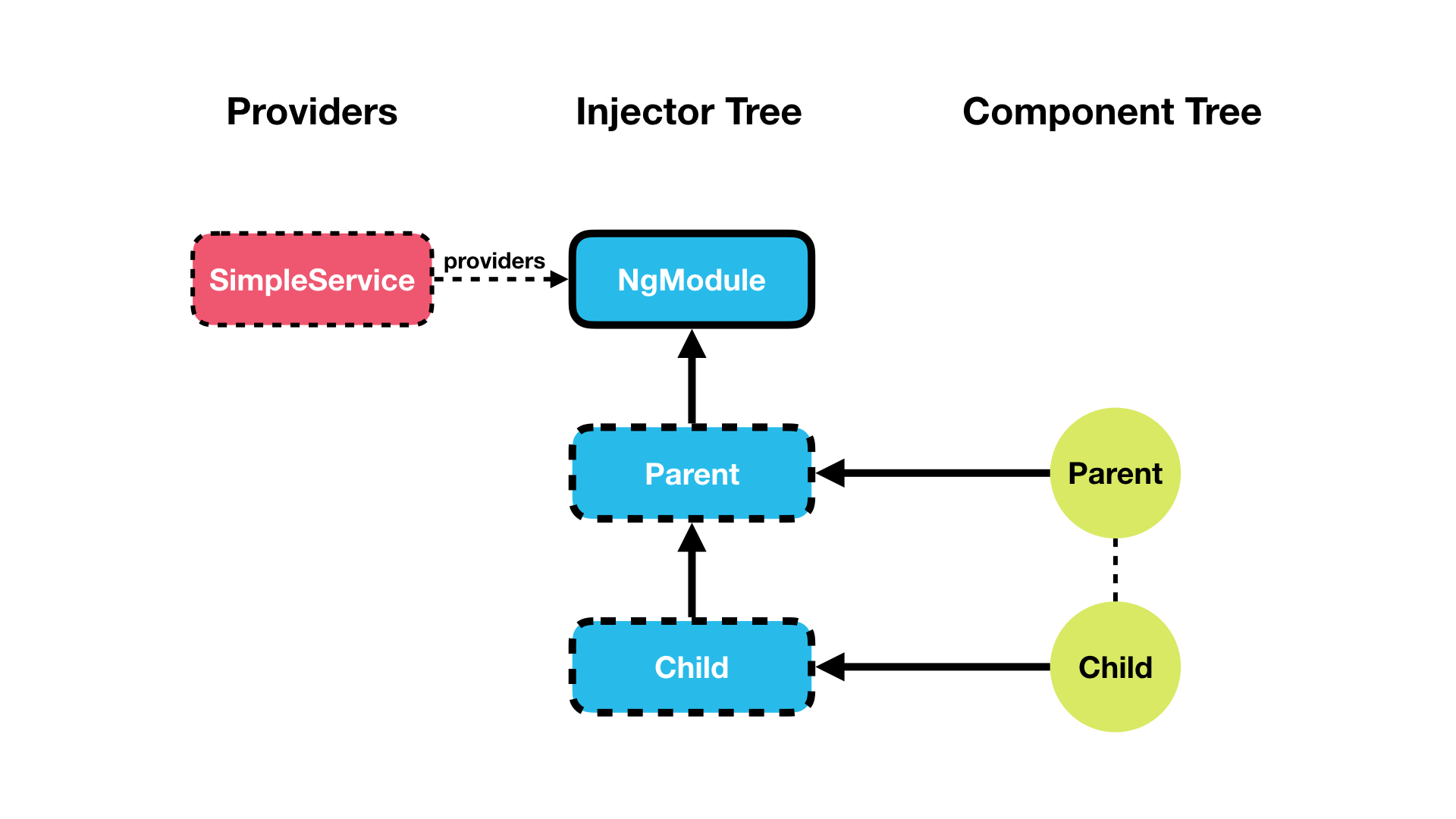

In this configuration the service has been injected onto our applications root NgModule and therefore is in our root injector.

So every request to resolve and inject the token SimpleService is going to be forwarded to our single root injector.

ngmodule providers

Therefore since we only have one injector which is resolving the dependency, every time we request an instance of SimpleService to be injected into one of our components it’s always going to inject the same instance.

Important

Remember if we request the same token from the same injector we get the same instance.

Since we’ve bound the input field directly to the simple service’s value field and it’s the same instance of simple service used everywhere, then when we type into one input control it automatically updates the other input control and also the child components.

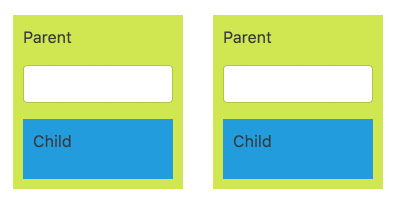

di example

Tip

If we want to share one instance of a service across the entirety of our application we configure it on our NgModule.

Component.providers

Let’s now see what happens when we configure our SimpleService additionally on the ParentComponent via the providers property.

@Component({
 selector: 'parent',
 template: `...`,
 providers: [ SimpleService ]
})
class ParentComponent {
  constructor(private service: SimpleService) { }
}

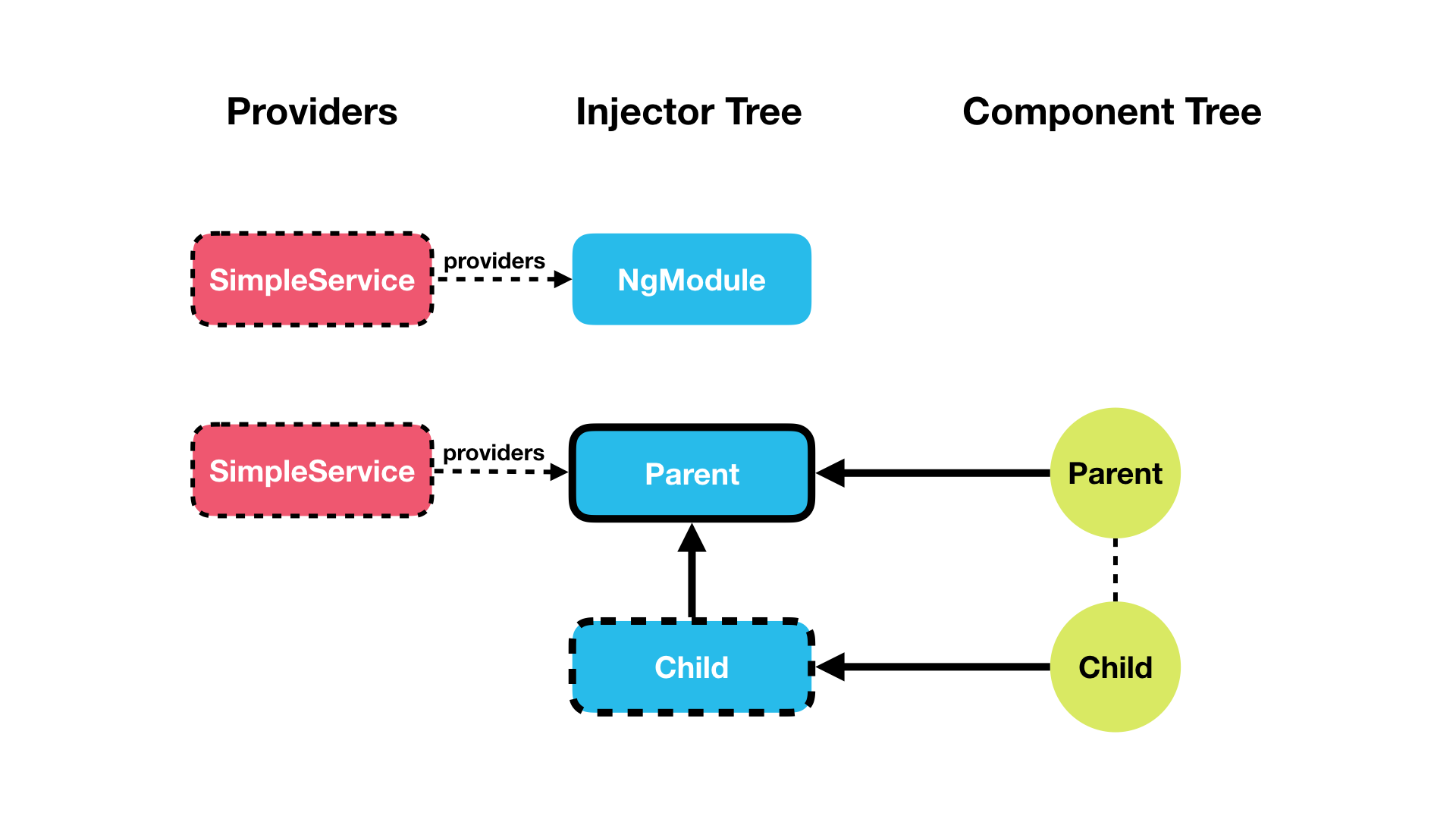

Now each ParentComponent has its own child injector with SimpleService configured, like so:

component providers

We can see from the running the code above that if we type into one parent component only that parent component and its child component automatically updates, like so:

di component providers example

Each instance of ParentComponent now has its own instance of SimpleService, so state is not shared globally but only between a ParentComponent and its child components.

That’s because each instance of ParentComponent has its own child injector with SimpleService configured as a provider.

Important

Remember when we request the same token from different injectors we get the different instances.

When we configured the SimpleService on the parent component it created a child injector, and when we tried to inject SimpleService into the parent component constructor it resolved and created an instance of SimpleService from its own injector.

Tip

If we want to have one instance of a service per component, and shared with all the component’s children, we configure it on the providers property on our component decorator.

Component.viewProviders

If we now configure the SimpleService provider on the viewProviders property on the ParentComponent nothing changes, we still get the functionality we had before.

But let’s use content projection and the ng-content component to change the child component from being a view child of parent to to being a content child of parent. i.e. let’s pass in <child></child> to the parent component like so:

<parent><child></child></parent>

So we change the AppComponent template to pass in child to the parent component, like so:

 <div class="row">
  <div class="col-xs-6">
    <parent><child></child></parent>
  </div>
  <div class="col-xs-6">
    <parent><child></child></parent>
  </div>
</div>

Change the ParentComponent template to project the passed in content to the same place the child component used to be, like so:

<div class="parent">
   <p>Parent</p>
   <form novalidate>
        <div class="form-group">
        <input type="text"
               class="form-control"
               name="value"
               [(ngModel)]="service.value">
      </div>
  </form>
  <ng-content></ng-content> (1)
</div>
1 We use content projection to insert the ChildComponent where it used to be hard coded.

Now even though child is still rendered under parent, it’s considered a content child and not a view child.

Let’s now change the configuration of ParentComponent to use viewProviders instead.

@Component({
 selector: 'parent',
 template: `...`,
 viewProviders: [ SimpleService ]
})
class ParentComponent {
  constructor(private service: SimpleService) { }
}

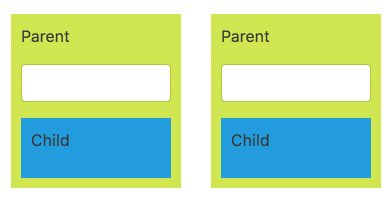

Now when we type into the ParentComponent the child component doesn’t update automatically.

di component viewproviders example

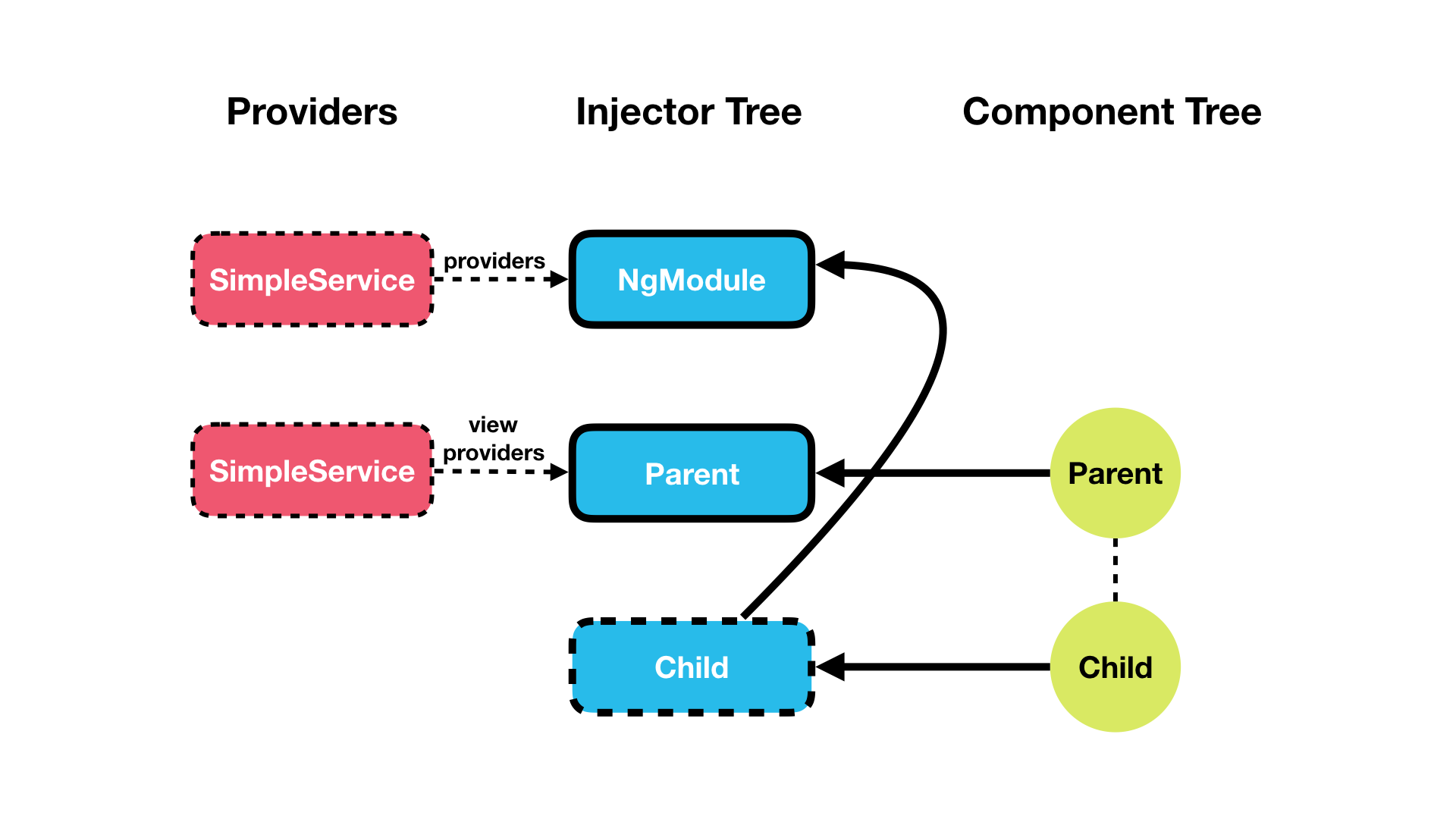

That’s because when using viewProviders the component creates an injector which is only used by the current component and any view children.

If you are a content child, as our child component now is, then it uses the injector in NgModule to resolve the dependency.

component viewproviders

Tip

If we want to have one instance of a service per component, and shared with only the component’s view children and not the component’s content children, we configure it on the viewProviders property of our component decorator.

Summary

We can configure the DI framework in Angular in three main ways.

We can configure a provider on the NgModule, on a component’s or directive’s providers property, and on a component’s viewProviders property.

Deciding where to configure your provider and understanding the differences is key to understanding how to architect an Angular application.

If we want an instance of a dependency to be shared globally and share state across the application we configure it on the NgModule.

If we want a separate instance of a dependency to be shared across each instance of a component and its children, we configure it on the component’s providers property.

If we want a separate instance of a dependency to be shared across each instance of a component and only its view children, we configure it on the component’s viewProviders property.

Listing

Listing 1. main.ts
import { NgModule, Component, Injectable } from "@angular/core";
import { FormsModule } from "@angular/forms";
import { BrowserModule } from "@angular/platform-browser";
import { platformBrowserDynamic } from "@angular/platform-browser-dynamic";

class SimpleService {
  value: string;
}

@Component({
  selector: "child",
  template: `
 <div class="child">
   <p>Child</p>
   {{ service.value }}
</div>
 `,
  styles: [
    `
      .child {
        background-color: #239cde;
        padding: 10px;
      }
    `
  ]
  // providers: [SimpleService]
})
class ChildComponent {
  constructor(private service: SimpleService) {}
}

@Component({
  selector: "parent",
  template: `
 <div class="parent">
   <p>Parent</p>
   <form novalidate>
  			<div class="form-group">
  			<input type="text"
  			       class="form-control"
  			       name="value"
  			       [(ngModel)]="service.value">
  		</div>
  </form>
  <ng-content></ng-content>
</div>
 `,
  styles: [
    `
      .parent {
        background-color: #d1e751;
        padding: 10px;
      }
    `
  ],
  viewProviders: [SimpleService]
  // providers: [SimpleService]
})
class ParentComponent {
  constructor(private service: SimpleService) {}
}

@Component({
  selector: "app",
  template: `
 <div class="row">
	<div class="col-xs-6">
		<parent><child></child></parent>
	</div>
	<div class="col-xs-6">
		<parent><child></child></parent>
	</div>
</div>
 `
})
class AppComponent {}

@NgModule({
  imports: [BrowserModule, FormsModule],
  declarations: [AppComponent, ParentComponent, ChildComponent],
  bootstrap: [AppComponent],
  providers: [SimpleService]
})
class AppModule {}

platformBrowserDynamic().bootstrapModule(AppModule);
