HTTP Example with Promises

In this video I'm using an online editor called Plunker to write and run Angular code. The book and code has since been updated to use StackBlitz instead. To understand more about why and the differences between read this.

View Code

Run Code

Learning Objectives
Cross-Origin Resource Sharing
Creating the App Component
Creating a Search Service
Using Promises
Consuming Our Search Service
Adding a Loading Indicator
Using a Domain Model
Summary
Listing

In this lecture we are going to create a mini application which lets us search iTunes for music.

We’ll be using the freely available iTunes API to perform the search: https://affiliate.itunes.apple.com/resources/documentation/itunes-store-web-service-search-api/

Learning Objectives

What is CORS and how to temporarily bypass this security feature in your browser.
How to create an intermediate service to handle our HTTP requests to an API endpoint.
How to provide the service and consume it in components.
How to convert the responses into instances of a domain model.
How to handle asynchronous work by using promises.

Cross-Origin Resource Sharing

To use this API we need to deal with a thorny issue called CORS, Cross-Origin Resource Sharing.

This is a security measure implemented in all browsers that stops you from using an API in a potentially unsolicited way and most APIs, including the iTunes API, are protected by it.

Because of CORS if we tried to make a request to the iTunes API URL with the Http client library the browser would issue a CORS error.

Chrome Workaround

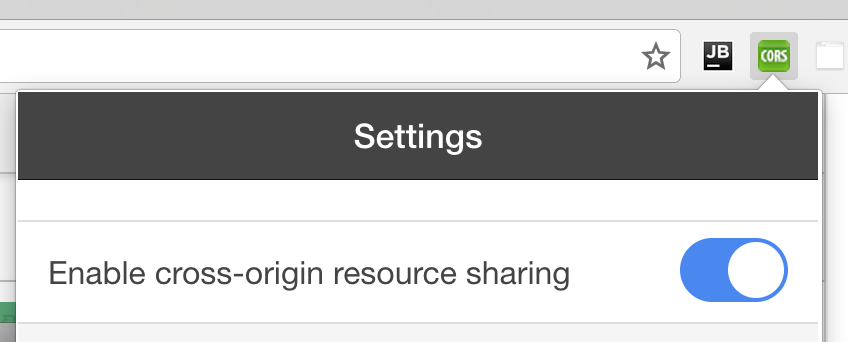

For chrome I prefer to use a chrome plugin which lets us switch CORS on and off with the click of a button, install the plugin from this link: https://chrome.google.com/webstore/detail/allow-control-allow-origi/nlfbmbojpeacfghkpbjhddihlkkiljbi

This adds a button to your chrome toolbar, make sure it is enabled and green like so:

Firefox Workaround

If you are using FireFox you can try this plugin: https://addons.mozilla.org/en-Gb/firefox/addon/cors-everywhere/

Safari Workaround

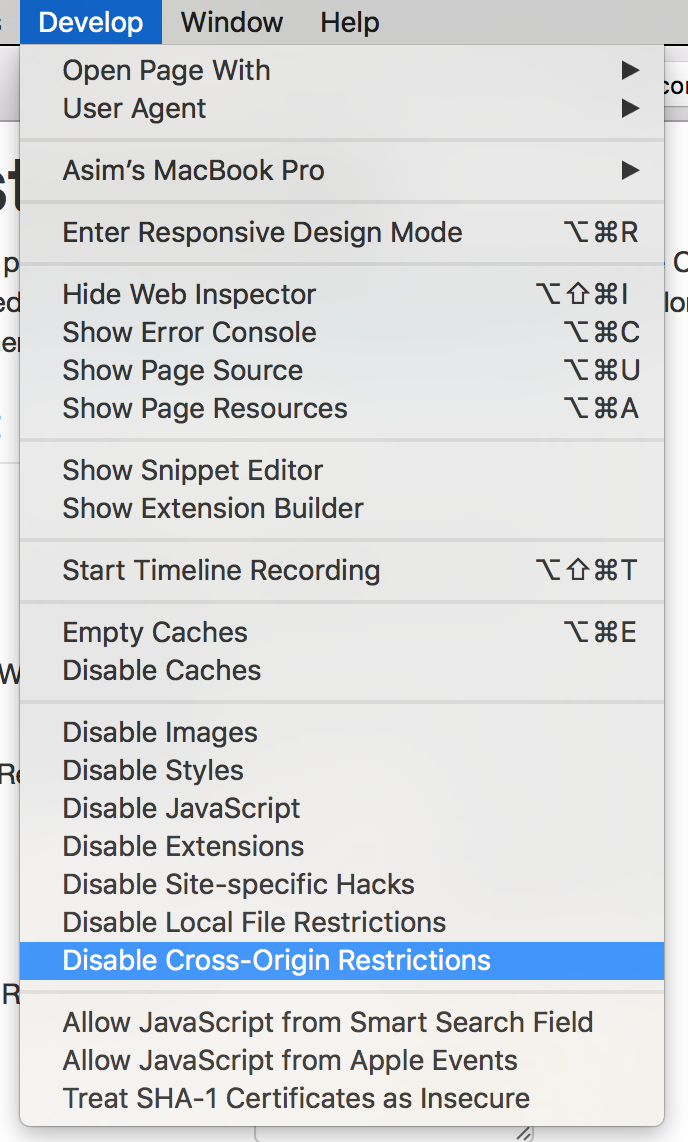

If you are using Safari start by enabling the Develop menu from Preferences → Advanced. When this is done you may need to restart Safari. In the Develop menu make sure that Disable Cross-Origin Restrictions is checked, you will need to refresh the page for the changes to take effect.

Creating the App Component

First let’s create a simple app component with our search field:

@Component({
  selector: 'app',
  template: `
<form class="form-inline">
  <div class="form-group">
    <input type="search"
           class="form-control"
           placeholder="Enter search string"
           #search> (1)
  </div>
  <button class="btn btn-primary"
          (click)="doSearch(search.value)"> (2)
          Search
  </button>
</form>
 `
})
class AppComponent {
  constructor() { }

  doSearch(term:string) {
  }
}

1	This input control has a template reference variable called `search`.
2	Pressing the Search button calls the doSearch() function and passes it the search term.

We have a form input control with a search button. When someone presses the search button it calls the doSearch function with the search term we want to search the iTunes database with.

Creating a Search Service

So far in this section we’ve used the Http client library directly from a component by injecting it into the component’s constructor.

However the recommended method is to create an intermediate service which uses the Http client library to make the requests. Instead of returning raw json data the service converts the response into one or more concrete instances of classes, into something called a domain model.

This makes it easier to test our component later on. We don’t have to mock raw HTTP calls but instead, we can define test data as instances of our domain model, more on that later in our lecture on testing.

So we are going to create our own intermediate service which I am going to call SearchService.

@Injectable() (1)
class SearchService {
  apiRoot:string = 'https://itunes.apple.com/search';
  results:Object[];
  loading:boolean;

  constructor(private http:Http) { (2)
    this.results = [];
    this.loading = false;
  }

  search(term:string) {
  }
}

1	We decorate the class with `@Injectable` so Angular knows it should inject the Http service into the constructor.
2	The Http client is injected into our `SearchService` in the constructor.

Note

We also provide our SearchService and make it available globally via the NgModule providers list.

Using Promises

The search function is going to make an asynchronous call using the Http client lib to the iTunes API.

There are two ways we like to handle asynchronous functions in Angular one is via Promises and the other via Observables.

In this lecture we will use Promises and in the next we’ll solve the same problem using Observables.

Since we are using promises we need the search function to return a promise, like so:

search(term:string) {
  let promise = new Promise((resolve, reject) => {
    //TODO
  });
  return promise;
}

Note

If you remember from the section on ES6 and TypeScript we can use promises by returning an instance of a Promise class.

We put the code for our search function where the TODO comment lives.

When the HTTP response arrives from the iTunes API, we finish our processing and call the resolve() function. This let’s any interested parties know the asynchronous task is complete and let them perform any follow on tasks.

If the HTTP response returned an error we call the reject() function which again let’s any interested parties know there was an error.

So now let’s flesh out this function with our HTTP get request, like so:

search(term:string) {
  let promise = new Promise((resolve, reject) => {
    let apiURL = `${this.apiRoot}?term=${term}&media=music&limit=20`;
    this.http.get(apiURL)
      .toPromise()
      .then(
        res => { // Success
          console.log(res.json());
          resolve();
        }
      );
  });
  return promise;
}

First we construct a URL which will instruct iTunes to perform a search for us, like so:

let apiURL = `${this.apiRoot}?term=${term}&media=music&limit=20`;

Then we make a GET request to that URL with:

this.http.get(apiURL)

It return an Observable, we are working with Promises in this example so let’s convert it to a Promise with:

.toPromise()

Tip

Remember to add this import to the top of the file import 'rxjs/add/operator/toPromise';

When the API responds it calls the function we pass to then with a Response object and we are just printing out the JSON for now.

.then(
  res => { // Success
  console.log(res.json());
  }
);

Consuming Our Search Service

To use the SearchService we need to configure it as a provider on our NgModule

@NgModule({
  imports: [
    BrowserModule,
    HttpModule,
  ],
  declarations: [AppComponent],
  bootstrap: [AppComponent],
  providers: [SearchService]
})
class AppModule { }

We also need to inject it into our AppComponent and call the itunes.search() function when the user presses the Search button

class AppComponent {
  constructor(private itunes:SearchService) { }

  doSearch(term:string) {
    this.itunes.search(term)
  }
}

Now when we type in Moo into the input control and press Search this calls the API with https://itunes.apple.com/search?term=moo&media=music&limit=20 and prints the results to the console, like so:

Object {resultCount: 20, results: Array[20]}

We are interested only in the results property, this is the list of search results.

Rather than return the search results to the component, let’s instead store the results on the SearchService to make it easier to share the results between components and at the same time let’s add an error handler, like so:

search(term:string) {
  let promise = new Promise((resolve, reject) => {
    let apiURL = `${this.apiRoot}?term=${term}&media=music&limit=20`;
    this.http.get(apiURL)
      .toPromise()
      .then(
        res => { // Success
        this.results = res.json().results;
        resolve();
        },
        msg => { // Error
        reject(msg);
        }
      );
  });
  return promise;
}
}

We also call the resolve() and reject() functions above after we have finished processing the callback from iTunes so the calling function gets notified and can perform any post processing.

Let’s now render these results in our app component.

We are keeping the data on the iTunes service and to loop over them we use an NgFor directive like so:

<ul>
  <li *ngFor="let track of itunes.results">
    {{track.trackName}}
  </li>
</ul>

Now when we run the app and type in Moo we get a set of track returned and for each one we print out the track name.

That’s great but we can do better, let’s use the Twitter Bootstrap list UI style and also show the track image and link to the track on iTunes.

Note

The HTML below might look complex but it’s just standard Twitter Bootstrap layout.

<ul class="list-group">
  <li class="list-group-item"
      *ngFor="let track of itunes.results">
    <img src="{{track.artworkUrl30}}">
    <a target="_blank"
       href="{{track.trackViewUrl}}">{{ track.trackName }}
    </a>
  </li>
</ul>

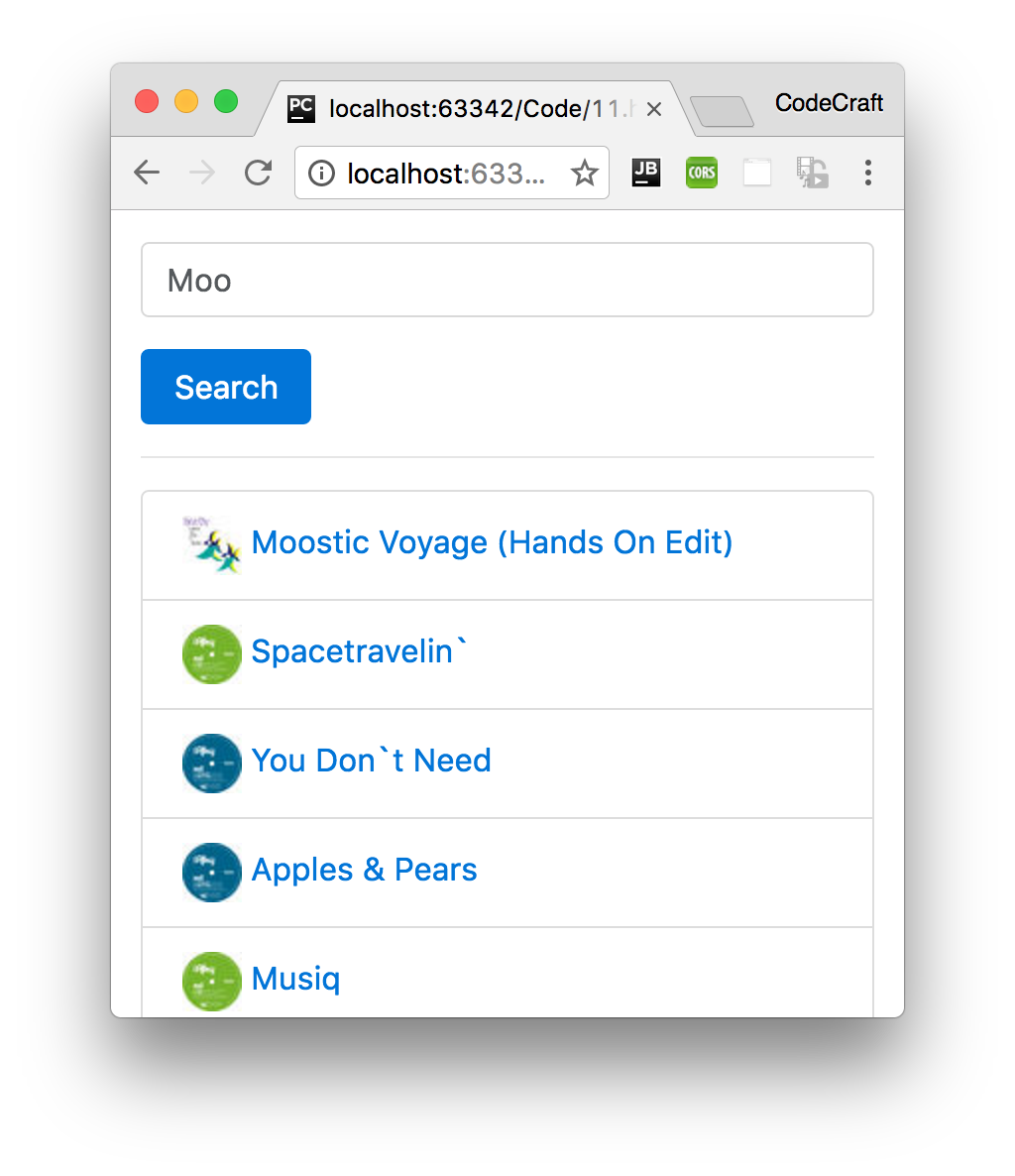

That’s it now when we run the application and search for Moo we get something that looks like this:

Figure 1. iTunes Track Search App

Adding a Loading Indicator

So now it’s all working but there is one feature which is important when doing any asynchronous work and that’s to show a loading indicator to the end user, so they know the application is working and not broken.

Let’s show the text "Loading…" when we are still waiting for iTunes to return a response.

We create a boolean called loading on our AppComponent and then conditionally show a p tag if loading is true, like so:

<div class="text-center">
  <p class="lead" *ngIf="loading">Loading...</p>
</div>

We initialise loading to false so it doesn’t show when we first load the page, then we set it to true when we call the doSearch() function so it does show.

class AppComponent {
  private loading: boolean = false;

  constructor(private itunes:SearchService) { }

  doSearch(term:string) {
    this.loading = true;
    this.itunes.search(term)
  }
}

The above logic would show the "Loading…" message but we have no way of setting the loading boolean to false again, we have no way to remove the "Loading…" message.

We need to call some code when all the data has been returned by the iTunes API.

The SearchService already returns a promise and calls resolve on that promise when this happens. To hook into that we add a then handler onto the returned promise and set the loading boolean to false there, like so:

doSearch(term:string) {
  this.loading = true;
  this.itunes.search(term).then( () => this.loading = false)
}

Now when the itunes.search() function completes we set loading to false and the "Loading…" message disappears.

Using a Domain Model

We now have a functioning app.

However the format we are storing data in is just a plain JSON object, it’s far better to parse our raw JSON data into instances of classes, a domain model.

First let’s create a class called SearchItem which can encapsulate the fields we are interested in.

class SearchItem {
  constructor(public name: string,
              public artist: string,
              public link: string,
              public thumbnail: string,
              public artistId: string) {
  }
}

And then in our SearchService let’s parse the JSON and store instances of SearchItems instead.

A good method of achieving this is to use the map array function, this transforms each element in the array by passing it through a function like so:

this.results = res.json().results.map(item => { (1)
  return new SearchItem(
      item.trackName,
      item.artistName,
      item.trackViewUrl,
      item.artworkUrl30,
      item.artistId
  );
});

1	We loop through the `results` array, calling the function passed into map on each item. This function converts the raw JSON item into an instance of a `SearchItem` instead.

At the same time let’s be explicit and set the type of the results property on our SearchService to SearchItem[].

The full listing for our SearchService now looks like:

@Injectable()
export class SearchService {
  apiRoot: string = 'https://itunes.apple.com/search';
  results: SearchItem[];
  loading: boolean;

  constructor(private http: Http) {
    this.results = [];
    this.loading = false;
  }

  search(term: string) {
    let promise = new Promise((resolve, reject) => {
      let apiURL = `${this.apiRoot}?term=${term}&media=music&limit=20`;
      this.http.get(apiURL)
          .toPromise()
          .then(
              res => { // Success
                this.results = res.json().results.map(item => {
                  return new SearchItem(
                      item.trackName,
                      item.artistName,
                      item.trackViewUrl,
                      item.artworkUrl30,
                      item.artistId
                  );
                });
                // this.results = res.json().results;
                resolve();
              },
              msg => { // Error
                reject(msg);
              }
          );
    });
    return promise;
  }
}

The results property is now an array of SearchItems.

The names of the properties on our model have also changed, for instance trackName in the raw JSON returned from iTunes is now track on our SearchItem so we need to change our template bindings to match, like so:

<ul class="list-group">
  <li class="list-group-item"
      *ngFor="let track of itunes.results">
    <img src="{{track.thumbnail}}">
    <a target="_blank"
       href="{{track.link}}">{{ track.name }}
    </a>
  </li>
</ul>

Summary

The recommended method to interact via a Http service is by creating an intermediate service which has the responsibly of communicating with the API and converting the raw data into one or more domain models.

In this lecture we handled asynchronous code by using promises. By converting the observable returned from the Http client lib into a promise and also by returning and resolving our own promise from SearchService.

In the next lecture we’ll look at how we can implement the same solution by using observables.

Listing

Listing 1. main.ts

import { NgModule, Component, Injectable } from "@angular/core";
import { BrowserModule } from "@angular/platform-browser";
import { platformBrowserDynamic } from "@angular/platform-browser-dynamic";
import { HttpClientModule, HttpClient } from "@angular/common/http";

class SearchItem {
  constructor(
    public track: string,
    public artist: string,
    public link: string,
    public thumbnail: string,
    public artistId: string
  ) {}
}

@Injectable()
export class SearchService {
  apiRoot: string = "https://itunes.apple.com/search";
  results: SearchItem[];
  loading: boolean;

  constructor(private http: HttpClient) {
    this.results = [];
    this.loading = false;
  }

  search(term: string) {
    let promise = new Promise((resolve, reject) => {
      let apiURL = `${this.apiRoot}?term=${term}&media=music&limit=20`;
      this.http
        .get(apiURL)
        .toPromise()
        .then(
          res => {
            // Success
            this.results = res.results.map(item => {
              return new SearchItem(
                item.trackName,
                item.artistName,
                item.trackViewUrl,
                item.artworkUrl30,
                item.artistId
              );
            });
            resolve();
          },
          msg => {
            // Error
            reject(msg);
          }
        );
    });
    return promise;
  }
}

@Component({
  selector: "app",
  template: `
<form class="form-inline">
	<div class="form-group">
		<input type="search"
		       class="form-control"
		       placeholder="Enter search string"
		       #search>
	</div>
	<button type="button" class="btn btn-primary" (click)="doSearch(search.value)">Search</button>
</form>

<hr/>

<div class="text-center">
  <p class="lead" *ngIf="loading">Loading...</p>
</div>

<ul class="list-group">
	<li class="list-group-item"
	    *ngFor="let track of itunes.results">
		<img src="{{track.thumbnail}}">
		<a target="_blank"
		   href="{{track.link}}">{{ track.track }}
		</a>
	</li>
</ul>
 `
})
class AppComponent {
  private loading: boolean = false;

  constructor(private itunes: SearchService) {}

  doSearch(term: string) {
    this.loading = true;
    this.itunes.search(term).then(_ => (this.loading = false));
  }
}

@NgModule({
  imports: [BrowserModule, HttpClientModule],
  declarations: [AppComponent],
  bootstrap: [AppComponent],
  providers: [SearchService]
})
class AppModule {}

platformBrowserDynamic().bootstrapModule(AppModule);

Caught a mistake or want to contribute to the book? Edit this page on GitHub!

Advanced JavaScript

This unique course teaches you advanced JavaScript knowledge through a series of interview questions. Bring your JavaScript to the 2021's today.

Level up your JavaScript now!

[🌲,🌳,🌴].push(🌲)

If you find my courses useful, please consider planting a tree on my behalf to combat climate change. Just $4.50 will pay for 25 trees to be planted in my name. Plant a tree!
